Metal fiber Laser Cutting Solution for Metal Sheets
Fiber Laser Cutter For SS / CS / Iron / Brass / Copper Sheet
The model metal plate laser cutting machine GF-1530JH is Open design,which provides easy loading and unloading,and the single working table saves space,drawer style tray makes easy collecting and cleaning for the scraps and small parts,gantry double driving structure, high damping bed, good rigidity, high speed and acceleration.......

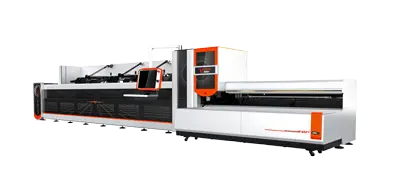

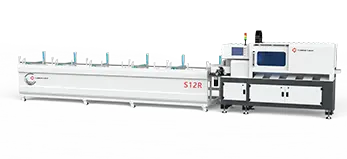

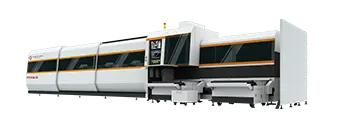

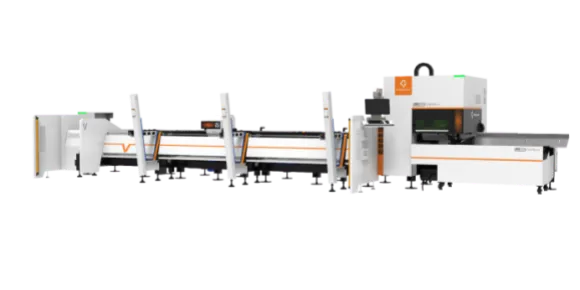

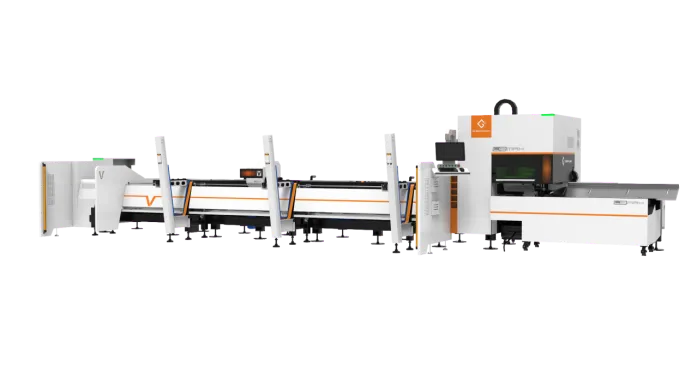

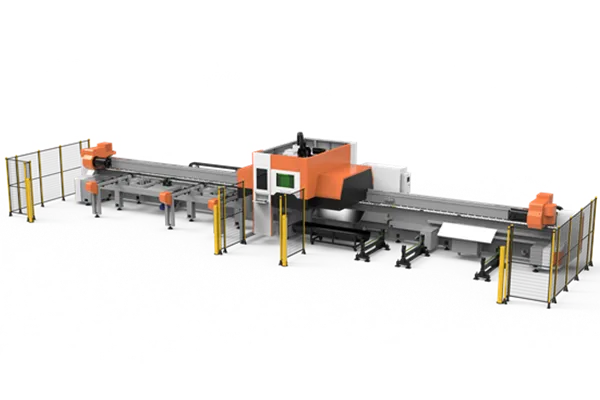

Metal Tube / Pipe Fiber Laser Cutting Machine
- pipe laser cutting machine
- Tube Laser Cutting Machine
- Metal Sheet Laser Cutting Machine
- Fiber Laser Cutting Machine
- Metal Plate and Tube Laser Cutting Machine
- Laser Welding Machine

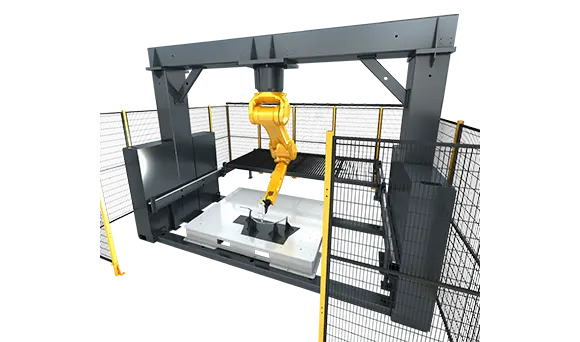

- Robot Arm 3D Laser Cutting Machine
- CO2 Laser Cutting Machine

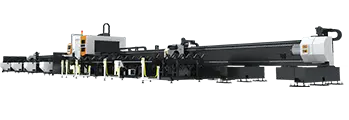

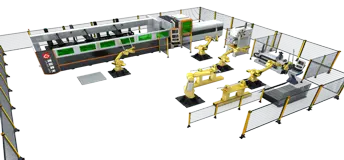

1.Automatic loading bundles of tubes
2.Automatic materials alignment
3.Automatic feeding and rotation

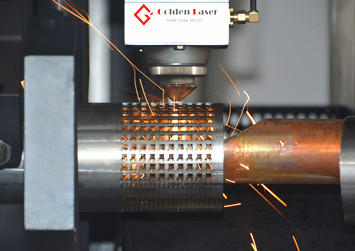

4.Fiber laser pipe cutting
5.Automatic collecting metal pipe products

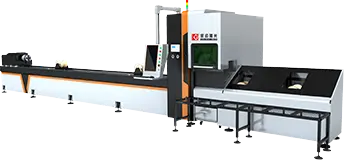

Golden Laser Pipe Laser Cutting Machine Objectives
Presenting the highest cost effectiveness tube cutting machine for global customers.
Focus on professional applications....
The model P2060A is specially suitable for 0.5-20mm carbon steel,0.5-10mm stainless steel,0.5-8mm aluminum,0.5-5mm brass,0.5-4mm copper and 0.5-4mm galvanized steel; and it is especially applicabe to the fitness equipment,sports equipment,oil exploration,display shelf,farm machinery,steel structure,medical device industry etc.
1.Laser power 700w 1000w 2000w 3000w
2.Imported fiber laser cutting head
3.N-LIGHT fiber laser resonator
4.2000w can cut 15mm carbon steel,8mm stainless steel,6mm aluminum,5mm brass,4mm copper.
5.Especially suitable for making fitness equipment...
- A variety of functions and better performance are making a fresh start on the NEW fiber laser cutting machine
- The Fastest Return on Investment
- Cutting High Reflective materials
- The Highest Stability
- Laser Power 700W 1KW 2KW 3KW 4KW
- Working Area 1.5X3m 2X4m 2X6m
- Pallet Changer (two working tables)
Full protective enclosure design provides safety protection from unseen laser radiation and mechanical movement
Pallet working table saves feeding time
Drawer style tray makes easy collecting and cleaning for the scraps and small parts
Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability
1.N-light/IPG Fiber laser generator
2.Laser power 1000w
3.Economical fiber laser compared with CO2 laser processing
4.Flexible solution to your exact needs
5.Expet in steel sheet, aluminium, brass,copper metal materials cutting
6.Low gas consumption & smart energy management
1KW fiber laser cutting machine for metal sheet and pipe.
Available for various diameters of tubes and sizes of sheets.
Max cutting sheet metal of carbon steel 10mm, stainless steel 5mm, aluminum 3mm, brass 2mm
For pipe / tube cutting,tube max processing length 3000mm,4000mm,6000mm,tube diameter from 20mm to 300mm;For sheet metal cutting,sheet cutting area 1500mmx3000mm,1500mmx4000mm,1500mmx6000mm
1.N-light/IPG fiber laser resonator
2.Cypcut control system
3.laser power 1000w
4.Can cut both pipe/tube and metal sheet
5.1000w laser cutting max thickness up to 12mm
6.Cutting size 1500*3000mm
1) It perfectly integrated the world famous ABB robot arm and fiber laser welding machine that can realize automated production to the maximum.
2) 6-axis cooperation makes a large working area and can reach long distance so as to perform welding process along any track within the working space.
3) Due to the compact structure and slim robot wrist, it can realize high performance operation even if a place with lots of restriction.
4) Process speed and position can be adjusted to achieve the best manufacturing precision with high yield.
5) Low noise, long routine maintenance intervals, long lifespan.
6) The robot arm can be controlled by handheld terminal.
XR160L for my company positioning automotive sheet metal processing industry-specific robot, the equipment by the Stäubli RX160L robot, IPG500W fiber laser, LASERMECH laser head (including the moving mechanism), positioning table, chiller, safety and other core components.
6-axis linkage, a wide range of work, up to a long distance, load-bearing capacity, can be in the work space for 3D track cutting
Compact, wrist slim, even in harsh conditions, restrictions on a lot of places, can still achieve high-performance operation
Process speed and positioning can be adjusted, to achieve the best manufacturing accuracy, high yield
Low noise, routine maintenance interval is long, long service life
The manipulator can be manipulated through a handheld terminal
By modifying the program and hardware changes, can achieve welding, packaging, handling and other functions...
•This is a multi-purpose machine, not only for acrylic, MDF board high speed cutting but also for thin sheet metal fine cutting,such as stainless steel,carbon steel,aluminum,
•Particularly suitable for advertising industry and furniture that has processing demands for both metal and nonmetal.
•Equipped with 400W/600W Co2 glass lasers, high quality output beam, excellent power stability, long life.
•Following type of cutting system automatically selects the optimum focus, thereby ensuring the best focusing effect and cutting effect, to avoid cut inconsistencies due to uneven material and different thickness.
