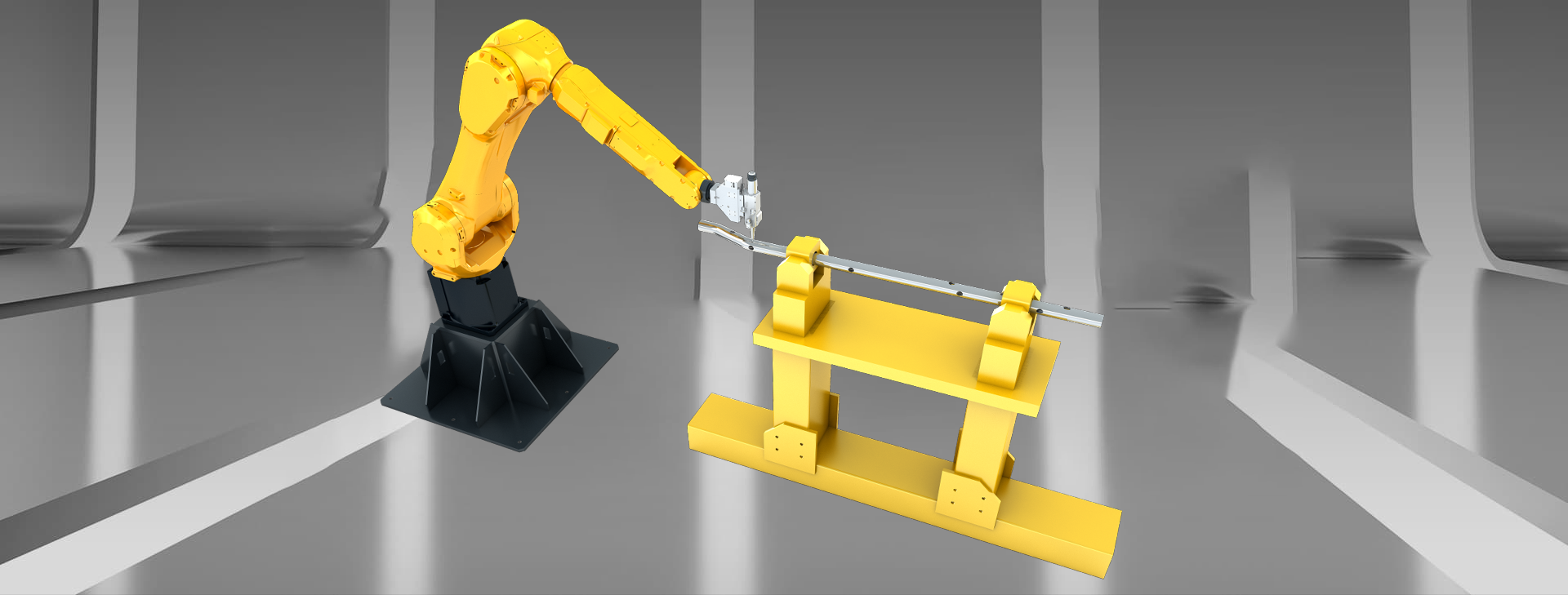

3D Robot Laser Cutting Machine with Stand Type
3D Robot Laser Cutting Machine with Stand Type

3D Robot Laser Cutting Machine with Stand Type

3D Robot Laser Cutting Machine with Stand Type
More precisely than other cutting methods, laser cuts with a robot arm allow your parts to improve quality.

3D Robot Laser Cutting Machine For Sale

The stand-type 3D robot cutting machine uses a combination of industrial robots and fiber laser processing to complete trimming and punching at one time. The incision is neat and does not require secondary processing, which dramatically simplifies the process, reduces labor and tooling costs, and improves product quality and added value. A laser cutting robot is suitable for personalized tailoring needs.


Video Display of 3D Robot Laser Cutting Machine

Application of 3D Robot Laser Cutting Machine

Highlights of 3D Robot Laser Cutting Machine

Rich options
Rich options

Optional walking axis, gantry, base, or positioner to expand the processing range of a single robot, and multi-robot collaboration can also be used to improve processing efficiency and processing range.

Multiple protection options
Multiple protection options

It can be equipped with a protective net according to site requirements to isolate the robot working area to ensure the safety of the staff. It can also be equipped with a closed protective room and a dust filter to purify the environment and meet environmental protection standards.


Dual-uses 3D laser cutting and 2D laser cutting
Dual-uses 3D laser cutting and 2D laser cutting

The optional gantry can be equipped with a two-dimensional cutting platform to realize three-dimensional cutting and sheet metal cutting functions on the same robot laser cutting machine. The sheet metal cutting working size can reach 1500mm*3000mm.


Technical Data of 3D Robot Laser Cutting Machine

Model nameX2400D/X2400LM20iaXR160L/XR160D
Robot armABB IRB 2400FANUC M20iaStaubli TX160L
Radius of crane1.45M1.8M2M
InstallationHook/StandHook/StandHook/Stand
ApplicationCutting metal sheet/ tubeCutting metal sheet/ tubeCutting metal sheet/ tube
Positioning accuracy±0.03±0.03±0.03
Laser power (optional)1000W-3000W1000W-3000W1000W-3000W
Optional accessoriesROBOTMASTER software/SPRUTCAM softwareROBOTMASTER software/SPRUTCAM softwareROBOTMASTER software/SPRUTCAM software

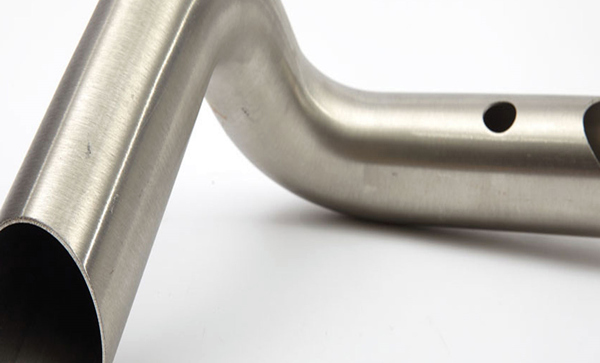

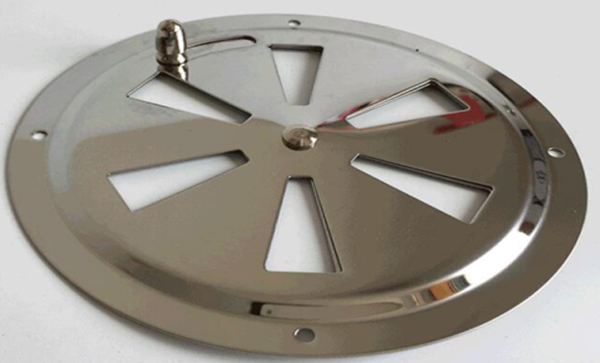

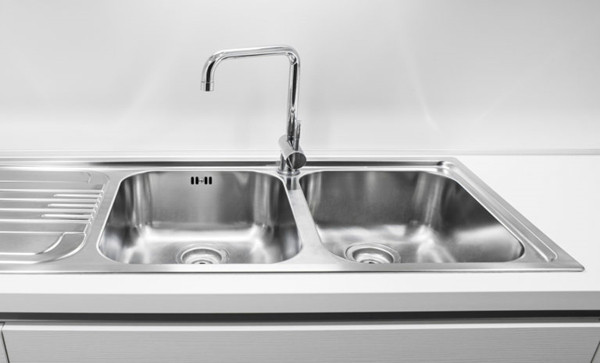

Finished Products of 3D Robot Laser Cutting Machine
