Multifunctional Handheld Laser Welding Machine W20
Multifunctional Handheld Laser Welding Machine W20

Multifunctional Handheld Laser Welding Machine W20

Portable, easy to operate, economical and intelligent laser machine. A cost-effective laser machine integrating laser welding, laser cleaning, and laser cutting.

Handheld Laser Welding Machine For Sale

Handheld laser welder W20 integrated laser welding, laser cleaning, and laser cutting. Providing an integrated laser solution eliminates cumbersome operating procedures, reduces costs, and improves production efficiency. Thanks to the lightness of the handheld laser head, you can quickly solve the rust removal, welding, and cutting of metal pipes or metal sheets.

Benefits of Using Golden Laser's Handheld Laser Welder

Cost-effective and powerful

With one laser machine with multiple functions, you can have a device that can laser weld, laser clean, and laser cut for only a few thousand dollars. Golden Laser is available for you to choose different configurations. Welcome to further discuss your laser solution.

Applicable field

GXHJ series laser welding machine is especially suitable for thin metal pipes and metal sheets such as stainless steel, aluminum alloy, carbon steel, and highly reflective copper.

Flexible, Efficient, High Utilization

✔ Handheld laser welding machine is easy to move and can be used indoors and outdoors.

✔ Light handheld laser head, long service life, low failure rate, and stable performance.

✔ Changing nozzles is quick and easy.

✔ The operation is simple, and female operators can use it easily.

High compatibility

Golden Laser can provide IPG, nLight, Raycus max, and other brand lasers to meet customers' individual requirements.

Video Display of Handheld Laser Welding Machine

Application of Laser Welding Machine

Comparison of handheld welding and traditional welding


Laser welding

Traditional welding


High efficiency, three times faster than TIG



Consistent high-quality results

Based on welding experience

Difficulty of use

Convenient and fast, easy to use



Not easily deformed

A large amount of deformation

Heat affected zone



Wobble Welding

Weld width up to 2-3MM


Personnel training

Ordinary operators are fine, and the salary is ordinary

Need several years of experience, a high salary

Pre-weld treatment

No prefabricated bevel required

Prefabricated groove (to achieve the same base metal)

Post-weld treatment

No polishing required

need polishing


Cutting, rust removal


The difference between handheld welding and traditional welding

Laser weldingTIG welding (argon arc welding)MIG welding (arc welding)
  • Fast welding speed and high welding efficiency.

  • The welding is not deformed, the weld seam is beautiful, and no grinding is required after welding, which saves staffing.

  • The operation is simple, flexible and convenient, and you can directly operate it without professional welding knowledge.

  • Large heat input, large deformation of parts

  • After welding, treatment is required

  • Welding of thin sheet metal is difficult

  • Professional welding knowledge and experience required

  • Consumable welding wire

  • Grinding is required after welding

  • Limited operating angle

  • Professional welding knowledge and experience required

  • High requirements on raw materials, sensitive to oil rust


Highlights of Handheld Laser Cutting Machine

SUP20T Fiber Laser Head

A three-in-one control system, flexible switching between laser welding, cleaning and cutting, multiple safety alarms, easy and flexible operation.

More stable

All parameters can be seen, monitor the status of the whole laser machine in real time, avoid problems in advance, facilitate troubleshooting and solve problems, and ensure the system's stable operation.

Reliable wire feeding control system

Independent and stable wire feeding mechanism, simple and easy to operate.

Technical Data of Small Tube Laser Cutting Machine

Laser power1500W2000W
Laser modeContinuous/ Pulse
Laser wavelength1064NM
Beam qualityM2<1.2M2<1.5
Laser swing range0-5mm
Output power stability±2%±2%
Power requirements220V+10%,single phase
Whole power consumption≤9KW≤12KW
Cooling systemCustomized industrial-grade dual-temperature dual-control chiller
Fiber cable length10M customized
Working environment temperature range15-35
Working environment humidity<70% without condensation
Welding thicknessMAX3mmMAX5mm
Suitable materialsStainless steel, carbon steel, aluminum galvanized sheet, copper,etc.
Welding seam requirements<0.2mm
Welding speed0~120mm/s

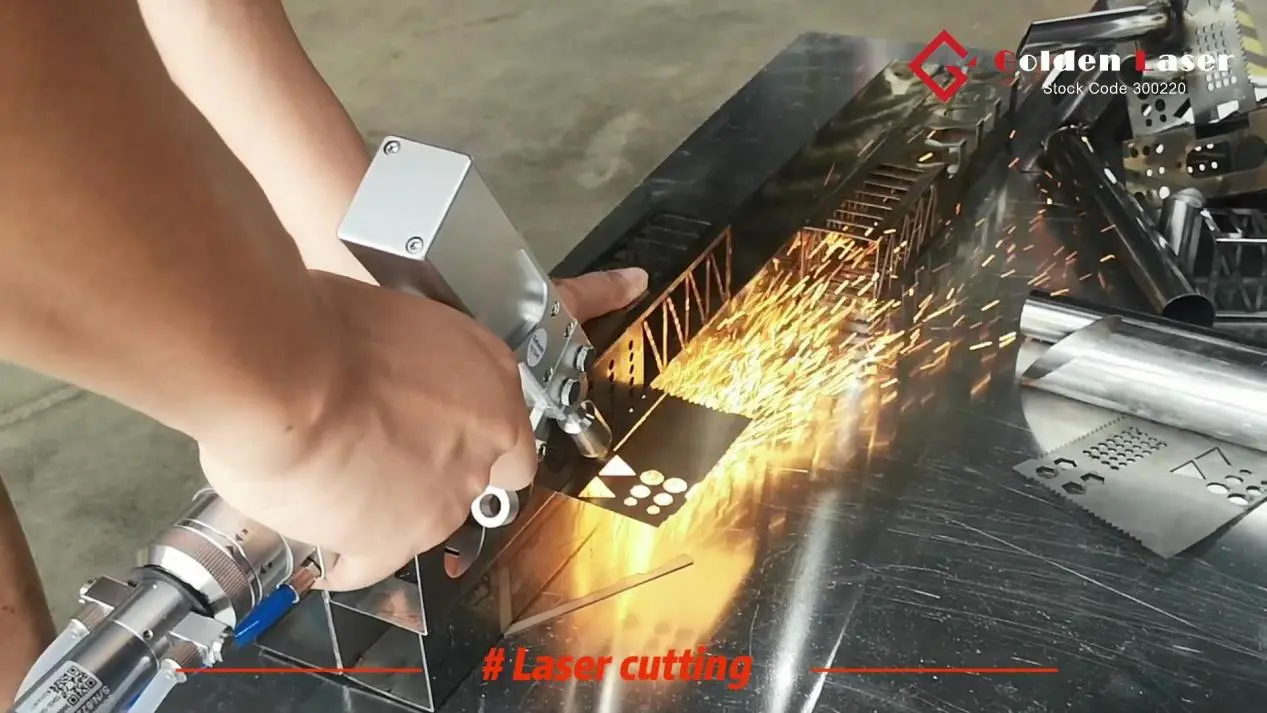

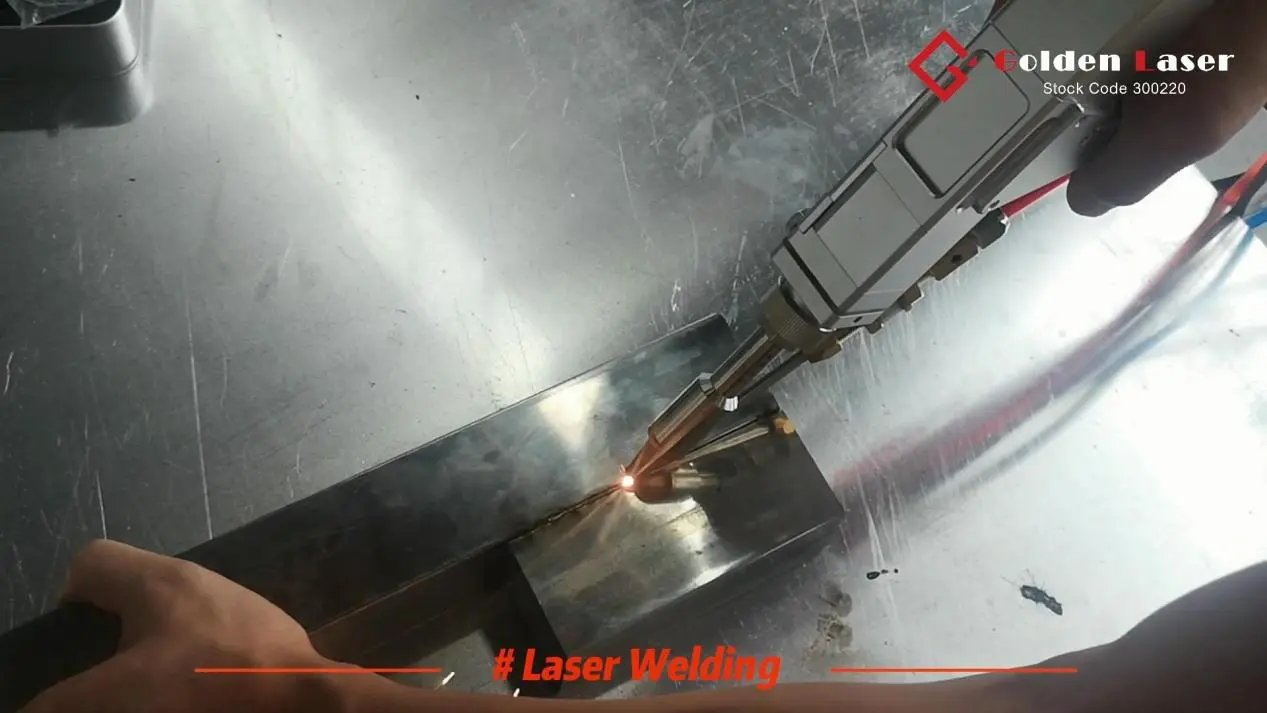

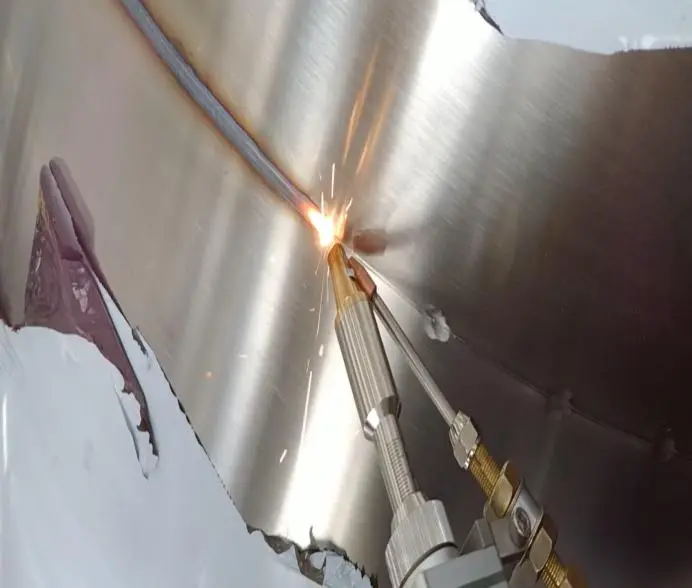

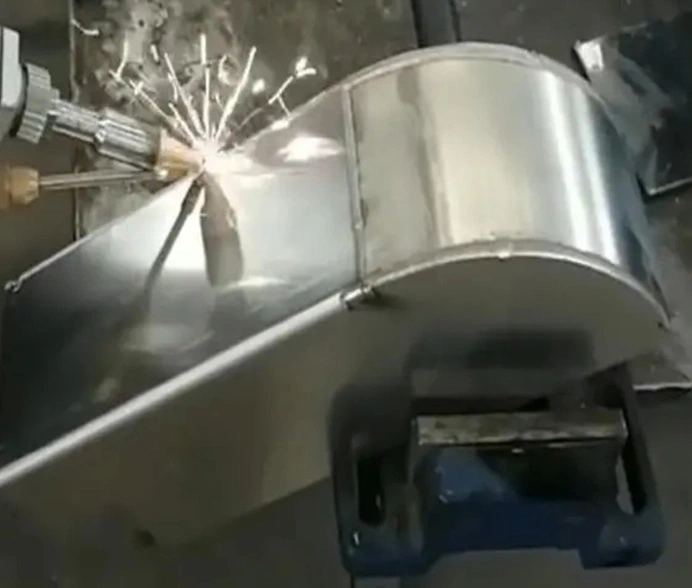

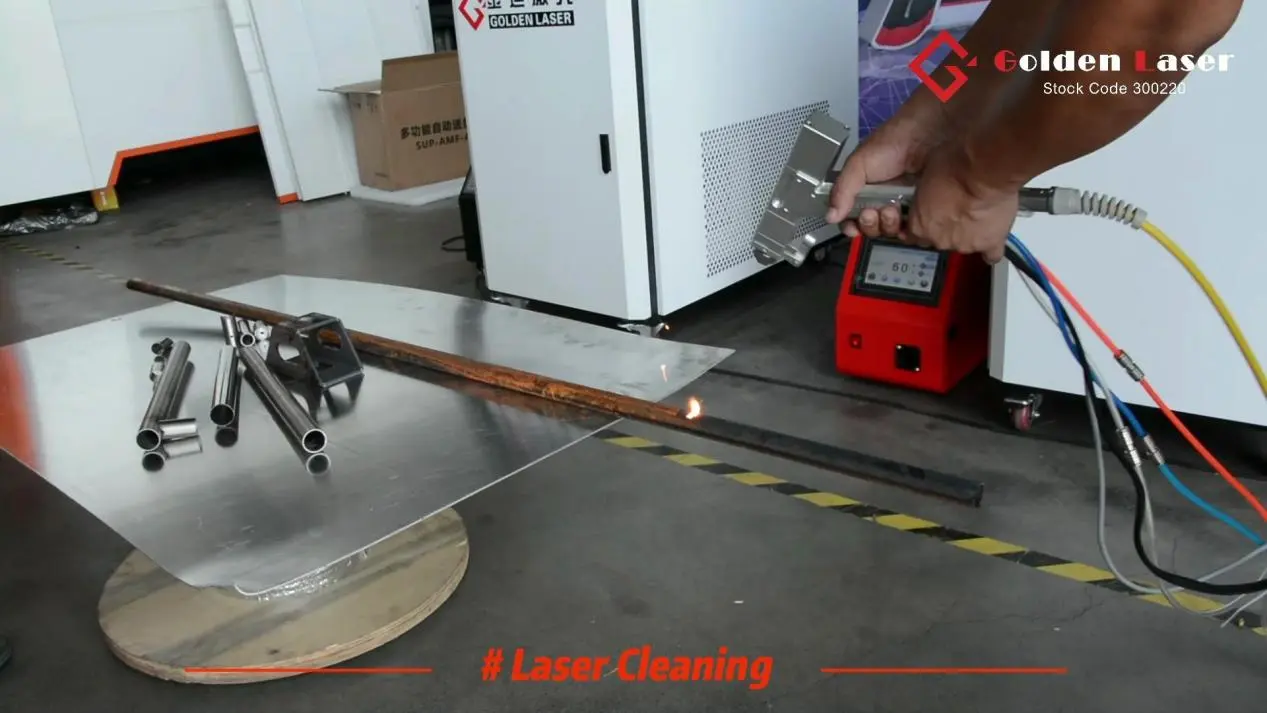

Finished Products of Handheld Laser Welding Machine

Software of Handheld Fibre Laser Welder

User Interface

The software of a handheld fiber laser welder typically includes a user-friendly interface that allows the operator to easily input and edit welding parameters, such as laser power, pulse frequency, and welding speed.

Programmable Settings

Handheld fiber laser welders often come with pre-set programs for common welding applications, such as thin sheet metal welding or precision welding. The software allows the operator to save customized welding settings and recall them for future use.

Real-Time Monitoring

The software of a handheld fiber laser welder often includes real-time monitoring of the welding process, allowing the operator to make adjustments as needed to ensure optimal welding results.

Data Logging

Many handheld fiber laser welders include data logging capabilities, allowing the operator to track welding parameters and performance over time. This data can be used to optimize welding processes and improve overall efficiency.

Automotion of Handheld Laser Welding Machine

Many handheld fiber laser welders can be integrated with robotic arms, allowing for precise and repeatable welding operations. The robotic arm can be programmed to move the welder along a predetermined path, ensuring consistent and accurate welds.

Some handheld fiber laser welders can be equipped with vision systems that use cameras and image recognition software to guide the welding process. These systems can detect the location and orientation of the workpiece, and adjust the welding parameters accordingly to ensure a high-quality weld.

Automation of handheld fiber laser welders often includes remote control capabilities, allowing the operator to control and monitor the welding process from a distance. This can improve safety and efficiency in industrial environments.

Handheld fiber laser welders can be integrated with other systems, such as conveyor belts or material handling equipment, to automate the welding process and improve overall efficiency.

Automation of handheld fiber laser welders can include sensor feedback systems that detect and correct any errors in the welding process in real-time. This helps to ensure high-quality welds and reduce the likelihood of defects.

Golden Laser Warranty for Handheld Fibre Laser Welder Services

Warranty period

Golden Laser provides a one-year warranty for their handheld fiber laser welding and cutting machine, starting from the date of purchase.


The warranty covers any defects in materials or quality that occur during regular use of the laser welder handheld. If any part of the machine is found to be defective, Golden Laser will repair or replace it free of charge.


The warranty does not cover any damage caused by misuse, abuse, or neglect of the handheld laser welding system. It also does not cover normal wear and tear or any damage caused by external factors, such as power surges or natural disasters.

Warranty process

If you experience issues with your handheld fiber laser welding and cutting machine during the warranty period, contact Golden Laser's customer service department. They will provide instructions on shipping the small laser welding machine to their service center for repair or replacement.

Additional services

Besides the warranty, Golden Laser offers technical support and training to help you get the most out of your machine. They can guide setup, operation, maintenance, and troubleshooting assistance if you encounter any problems.

What Will Affect the Handheld Fiber Laser Welding Machine Price

Handheld fiber laser welding machine price can be affected by a variety of factors. If you're in the market for a fiber laser welder for sale, it's important to understand what these factors are so you can make an informed decision.

Power output

The power output of a portable laser welder is one of the primary factors that can impact its price. Higher power machines, like 1000w laser welding machine, are typically more expensive than lower power machines, as they are capable of welding thicker materials or completing jobs more quickly.


The features of a handheld fiber laser welding machine can impact its price as well. Machines with more advanced features, such as automatic controls or multi-axis positioning, may be more expensive than simpler machines.


The quality of the components and construction of the machine can also impact its price. Higher quality materials and construction methods may result in a more expensive machine, but they can also provide improved performance and durability over time.
