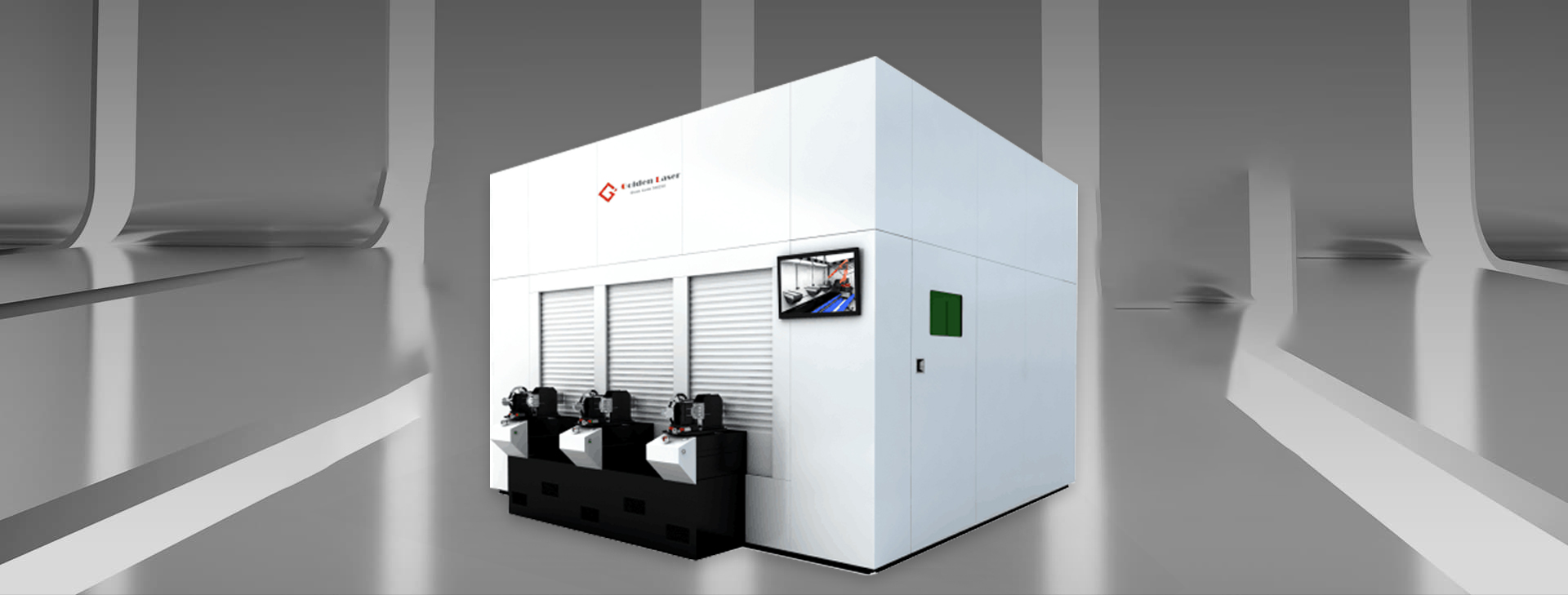

3D Robot Laser Cutting Machine with Closed Structure
3D Robot Laser Cutting Machine with Closed Structure

3D Robot Laser Cutting Machine with Closed Structure

It integrates the advantages of flexible processing, high precision, stability and reliability, safety and environmental protection, and convenient operation.

3D Robot Laser Cutting Machine For Sale

3D robot laser cutting machine with closed structure, the main benefit is safety and environmental protection. It is a robotic arm cutting machine that meets CE standards. Multiple working positions greatly improve the efficiency of laser cutting. Flexible laser cutting robot arm, discover more angles.

The closed structure robotic laser cutting machine is suitable for all kinds of customers with higher protection levels and higher requirements for environmental discharge.

Video Display of 3D Robot Laser Cutting Machine

Application of 3D Robot Laser Cutting Machine

Highlights of 3D Robot Laser Cutting Machine

High level of safety protection
High level of safety protection

● Fiber robot arm laser cutting machine adopts a fully closed structure, preventing the leakage of harmful substances generated during processing.

● Isolate the working area of the operator and the mechanical equipment to avoid mechanical damage during the operation

Automatic waste collection
Automatic waste collection

Equipped with a waste conveyor, it can automatically transport the waste generated in the laser cutting process to the designated material frame, which is convenient and trouble-free.

Possibility of unlimited space
Possibility of unlimited space

Configure the ground rail to expand the robot's range of motion, more flexible laser processing, and stronger metal-cutting capabilities.

Automation and high efficiency
Automation and high efficiency

The whole fiber robot arm laser cutting machine runs automatically and is easy to operate. Matching multiple working positions, automatically conveying workpieces one by one, increasing the production efficiency by 3 times.


Technical Data of 3D Robot Laser Cutting Machine

Model nameX2400D/X2400LM20iaXR160L/XR160D
Robot armABB IRB 2400FANUC M20iaStaubli TX160L
Radius of crane1.45M1.8M2M
InstallationHook/StandHook/StandHook/Stand
ApplicationCutting metal sheet/ tubeCutting metal sheet/ tubeCutting metal sheet/ tube
Positioning accuracy±0.03±0.03±0.03
Laser power (optional)1000W-3000W1000W-3000W1000W-3000W
Optional accessoriesROBOTMASTER software/SPRUTCAM softwareROBOTMASTER software/SPRUTCAM softwareROBOTMASTER software/SPRUTCAM software

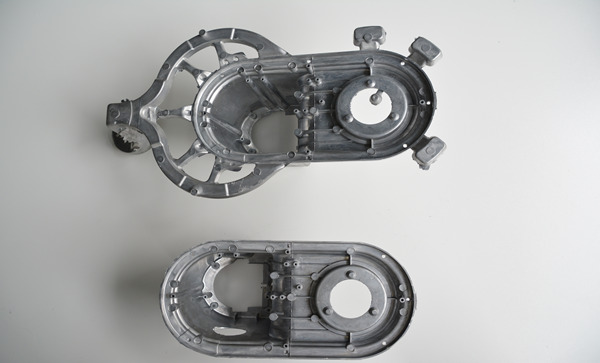

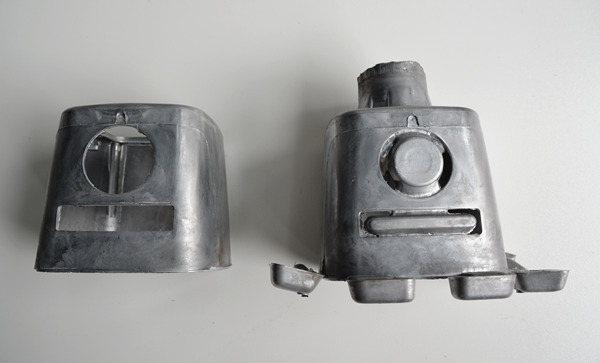

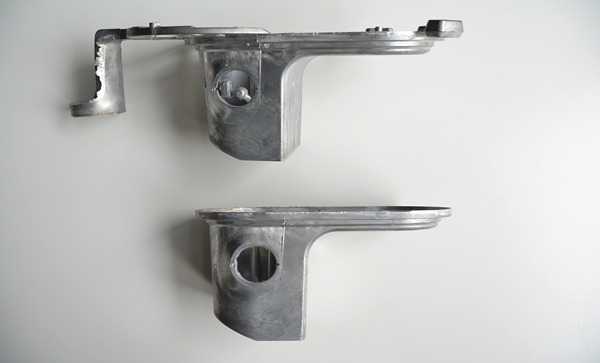

Finished Products of 3D Robot Laser Cutting Machine

Advantages of Enclosed Robot Laser Cutting Machine

1. The fully enclosed design can ensure that the laser does not leak and ensure the safety and reliability of the processing process.

2. Built-in dust collection pipeline, used with dust collector to purify the internal environment and ensure that the discharge meets the requirements

3. Isolate operators and robots, set up safety gates to ensure safe operation and avoid mechanical damage

4. The whole 3d robot laser cutting machine runs automatically, improving the degree of automation and improving the operating efficiency

5. Configure the slag conveyor to avoid the stay of non-professionals in the interior and improve the operation efficiency

6. Set up multiple stations to process different products, improve processing efficiency and increase compatibility

7. Set the ground rail to expand the robot processing space

8. The enclosed 3d robot laser cutting machine is flexible in configuration and can be configured with a variety of positioner ground rails to meet application needs
