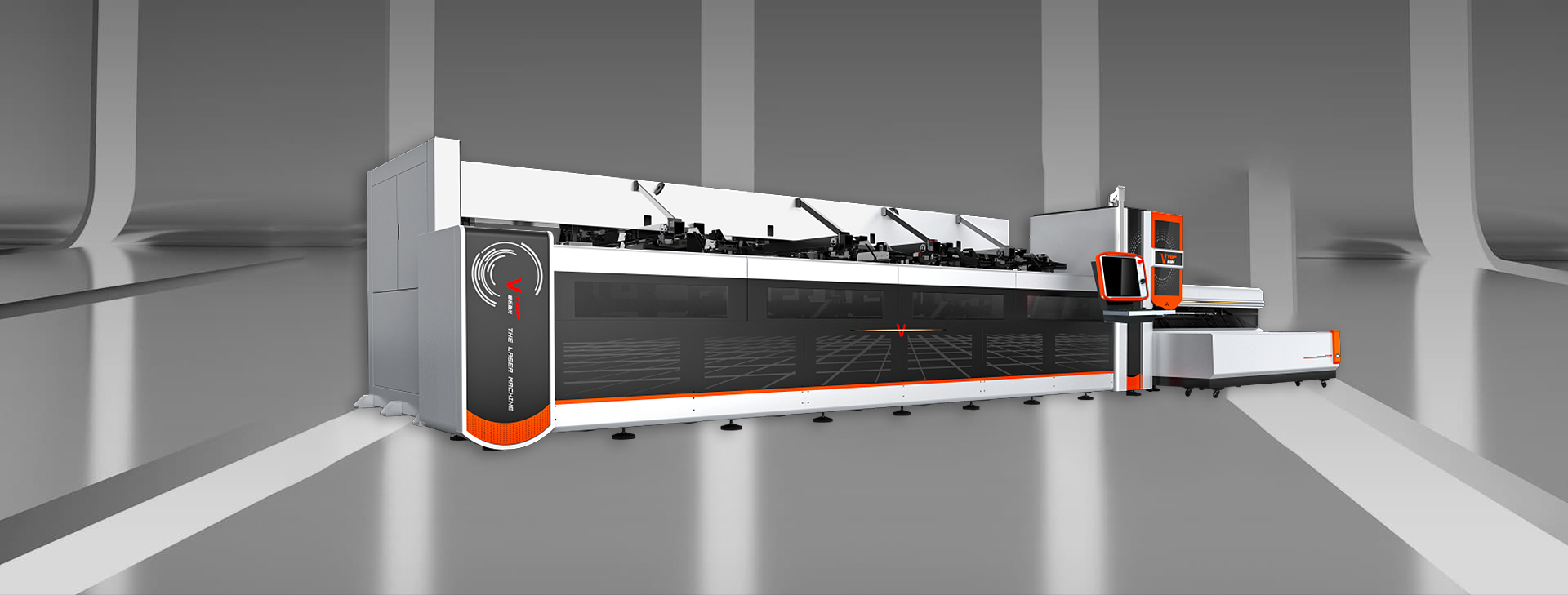

Large Capability Tube Laser Cutting Machine P3580A
Large Capability Tube Laser Cutting Machine P3580A

Large Capability Tube Laser Cutting Machine P3580A

Fiber laser cutting machine for large diameter tube processing.

Large Tube Laser Cutting Machine

The large laser cutting machine P3080A (P3580A) has upgraded the chuck based on the laser pipe cutting machine P2060A. Expand the chuck's size from a maximum of 200mm to 350mm. The machine bed can hold up to 8500mm length pipe, greater load-bearing capacity, and more laser cutting opportunities.


By improving the movement performance of the equipment, function upgrades, hardware upgrades, and system upgrades, the processing efficiency of the latest version of the high-end CNC fiber laser pipe cutting machine has increased by 40%.

Video Display of Large Tube Laser Cutting Machine

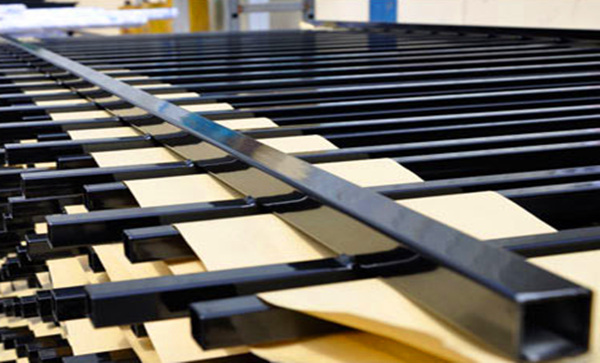

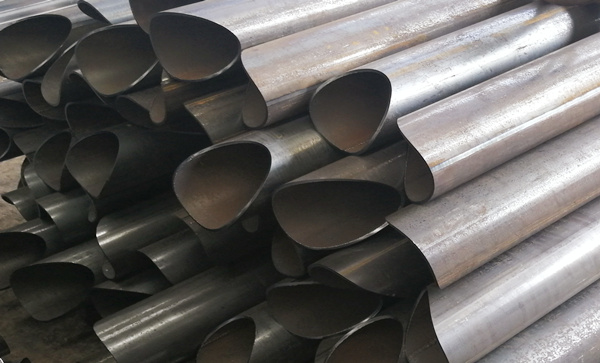

Application of Large Tube Laser Cutting Machine

Technical Data of Large Tube Laser Cutting Machine


Model name

P3080A P3580A

Workpiece length

0- 8000mm (26.2')

Tube diameter range

20 (0.7") -350mm (13.7")

Types of tubes

Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.

Max rotate speed

160r/min

Max acceleration

1.5g

XY axis position speed

120m/min

Single tube bearing weight

25kg/m

Laser source

IPG/ nLIGHT/ Raycus fiber laser generator

Auto Bundle maximum size and weight

800mm*800mm*8000mm; 2.5T



Laser Cutting Metals And Laser Powers

Material

1000W

1500W

2000W

2500W

3000W

4000W

6000w

Carbon steel

6

10

12

14

16

20

25

Stainless steel

4

6

8

10

10

12

16

Galvanized steel

3

5

6

8

8

10

12

Aluminum

3

4

5

6

6

10

16

Brass

2

3

4

5

5

8

10

Copper

1

2

2

3

3

4

6


Highlights of Large Tube Laser Cutting Machine

Larger Chuck Larger Capability

● Golden Laser expands the clamping range of the chuck, easily processing pipe fittings from 20mm to 350mm. Max weight for the single tube is 600kg. Especially suitable for you in the metal processing industry.

● Casting chuck base

The integrated casting process, the chuck, and the machine tool are integrated, the fixation is more reliable and the speed is faster.


Intelligent Automatic Feeding

● Supports mixed loading of similar pipes with different lengths, and the clamping position of the pipe cutting machine chuck is adaptively changed without manual intervention.

● 6000mm-8000mm unrestricted mixed row automatic intelligent processing. The maximum load capacity is 2.5 tons.

(Optional, if there is no automatic bundle loader, we will name it P3080 or P3580 laser tube cutting equipment.)

Humanized CNC cutting bus system

Bus control mode, support touch screen operation mode, design a new UI operation interface, with 7 intelligent management modules for planning, production, process, debugging, diagnosis, maintenance, and setting.

Innovative Pneumatic Chuck

● The full-stroke pneumatic chuck improves the adaptability of pipe change processing by 200%, which greatly reduces equipment downtime.

● The simpler installation method increases the replacement efficiency by 300%, the maintenance and maintenance of the chuck are simple, and the operation space is free.

● Special chuck clamping force smart console, adjusting the chuck will be more intelligent, precise and convenient.


Powerful Imported PA Laser System

It supports seamless connection with unmanned material storage, robotic automation, laser welding, laser marking, CNC bending, CNC stamping, etc. It also supports the embedded information production management model to establish a complete, advanced and intelligent pipe processing production system.

Feature-rich Lantek Flex3d Tube Cutting Software

● Support rich pipe types: round pipe, square pipe, OB pipe, D-tube, triangular tube, oval tube, angle steel, channel steel, H-beam, etc.

● Part design modules born for tube processing can quickly design functions such as perforation and bevel cutting with high efficiency.

● Automatically match the raw materials of the same tube type and the same section in the material library, and complete the automatic nesting of various kinds of tubes at one time.

● The industry's unique three-knife cutting for bevel co-edge is convenient for welding and reduces manual post-processing procedures.

● Support beveled co-edge nesting cutting, saving raw materials.

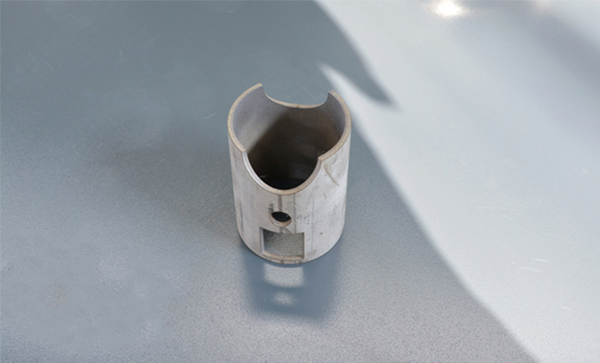

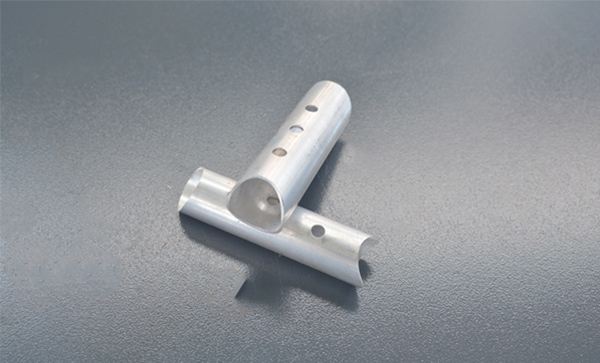

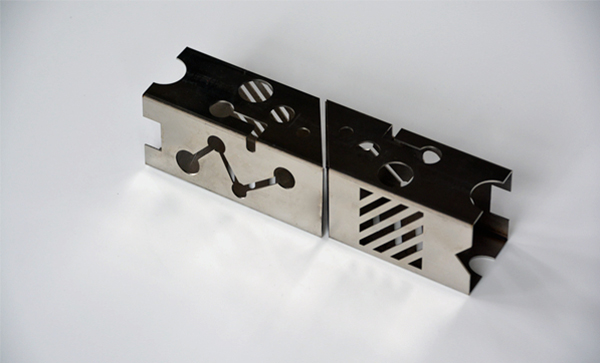

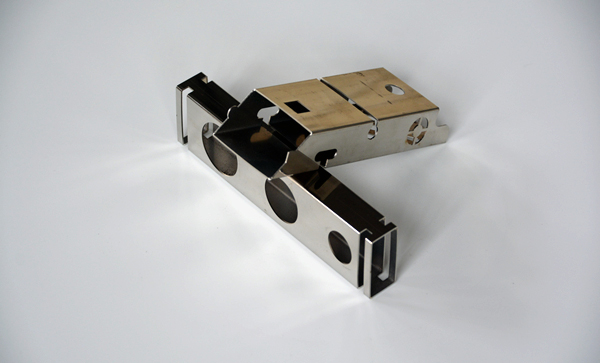

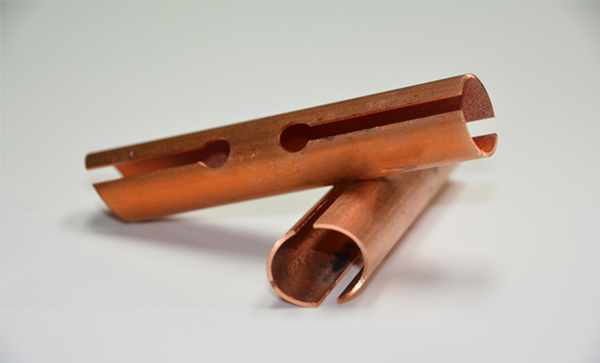

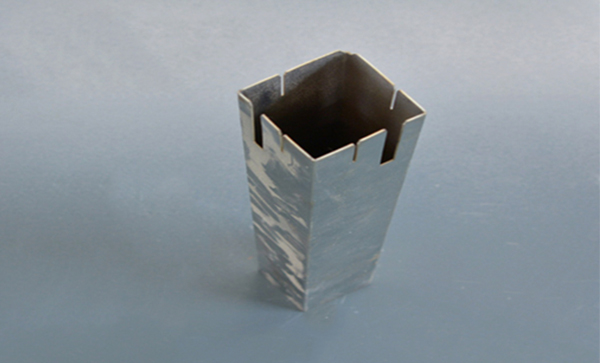

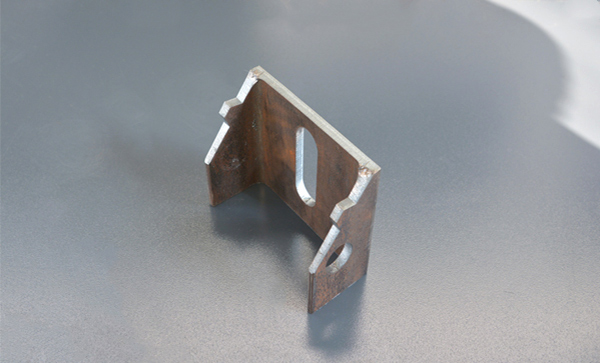

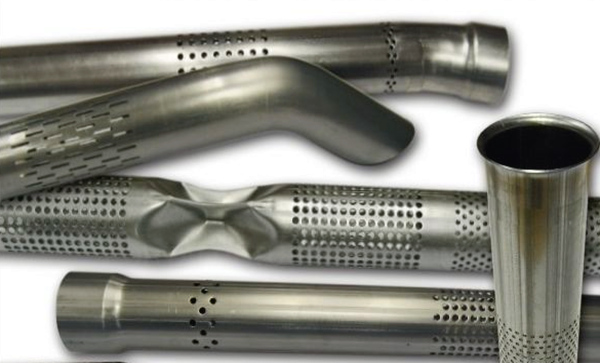

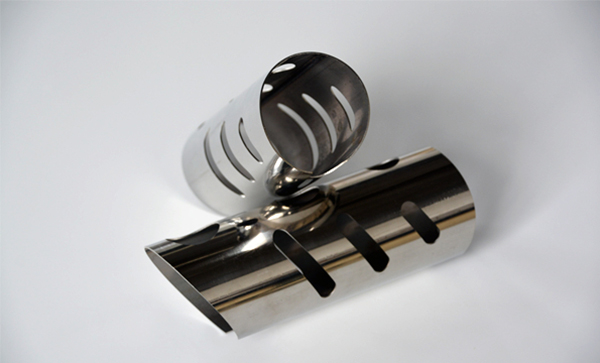

Finished Products of Large Tube Laser Cutting Machine
