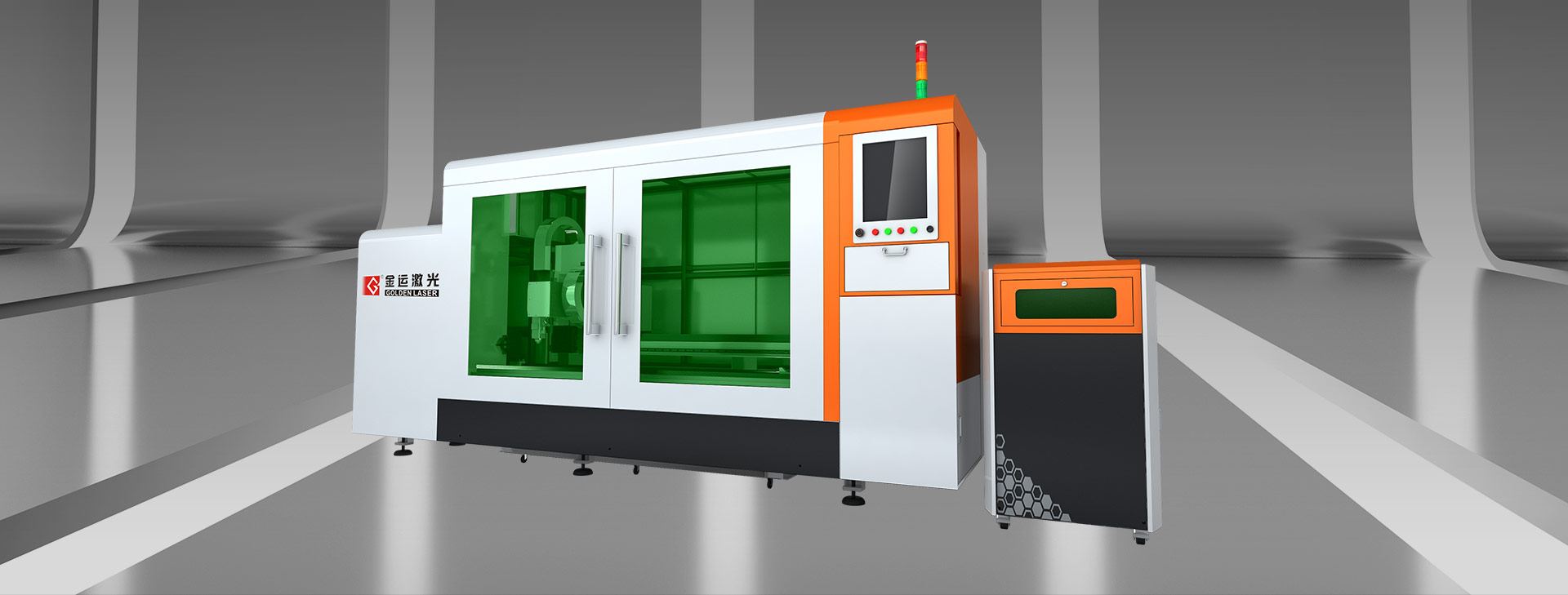

Finished Parts Tube Laser Cutting Machine Manufacturer
Customized flexible laser solution for the broadest tube processing capability.
Customized solutions for finished tube parts:
The cutting requirements of finished pipe fittings are different for different products, so we need to customize professional solutions for finished parts fiber laser cutting machine to meet customers' needs.
Facing the characteristics of finished tube parts, choosing a standard pipe cutting machine will cost more, but using a customized laser tubing cutter can meet requirements and save costs.
Not only according to the customer's product characteristics, but also according to the customer's requirements for the appearance, size, and auxiliary functions of the equipment to design a customized tube cutting machine.
Whether it is a short conventional formed tube, or a bent or shaped tube, all custom metal laser cutting machine solutions can be provided.
The professional CNC cutting system has flexible system openness, so loading and unloading can be completed by matching a customized three-dimensional robot. Realize industry 4.0 automated production.
Elbow and fittings cutting:
The simple laser tube cutting machine is more difficult to cut elbow fittings due to abnormal pipe types. However, the finished tube parts cutting machine can realize requirements of elbow and fittings through a customized clamping device.
Metal trolley:
Only need to perform shape cutting on the surface of the tube assembly of the metal trolley. It has the characteristics of uniform specifications and batches, which is very suitable for using a finished tube parts laser cutting machine.
Outdoor tent:
Generally, the tent frame adopts similar square and round pipe fittings for casing splicing, and the positions of the pipe butt holes are uniform. Therefore, matching two jaws to clamp both ends of the material for processing can improve accuracy.
| Model name | T2000 |
| Maximum processing length | 2000mm(customizable） |
| Workpiece length | 0-2000mm |
| Tube diameter range | 20-100mm(customizable） |
| Type of tube | Round tube, square tube, rectangular tube, oval tube, etc. |
| Single tube bearing weight | 8kg/m |
| Laser source | IPG/ nLIGHT/ Raycus |
| Laser power | 500W-2000W |
| X Y axis maximum acceleration | 0.8g |
| Repeatability | ±0.03mm |
| Auto feeder | Industrial robot (Optional) |
| Equipment dimensions (length × width) | 3500mm*1500mm |
| Equipment weight | 2T |
| Capacities | |||||||
| Material | 1000W | 1500W | 2000W | 2500W | 3000W | 4000W | 6000W |
| Carbon steel | 6 | 10 | 12 | 14 | 16 | 20 | 25 |
| Stainless steel | 4 | 6 | 8 | 10 | 10 | 12 | 16 |
| Galvanized steel | 3 | 5 | 6 | 8 | 8 | 10 | 12 |
| Aluminum | 3 | 4 | 5 | 6 | 6 | 10 | 16 |
| Brass | 2 | 3 | 4 | 5 | 5 | 8 | 10 |
| Copper | 1 | 2 | 2 | 3 | 3 | 4 | 6 |
The two ends of the formed pipe are clamped stably, which can make the speed faster and realize higher precision laser tube cutting. At the same time, use customized high-speed special-shaped chuck and tip-mounted fiber cutting head to realize the processing of elbows and special-shaped tubes.
By matching the 3D robot arm machine and auxiliary tooling, the cutting machine is integrated in the automated tube cutting machine producttion line and can quickly realize the automatic production mode of automatic feeding, clamping, cutting, unloading and palletizing.
Matching professional CNC cutting system, with good system expandability, supporting function development and expansion. Simultaneously supports two processing methods of 3D graphics import and program input, and the operation is convenient and simple.
Industrial robots:
The industrial robot, namely the industrial pipe cutting equipment, can be seamlessly connected with the 3D industrial robots to realize a variety of auxiliary functions, such as automatic feeding, automatic unloading, automatic palletizing, and automatic cleaning.
