Round Tube Laser Cutting Machine Manufacturer
Dedicated for round tubes and fully automatic in bundle loading, feeding and cutting.
With the rapid development of laser technology, round tube laser cutting machine has become the preferred equipment for the pipe processing industry. Without mechanical extrusion, running drill, and other problems, the round tube laser cutting machine has an excellent processing effect-high accuracy, energy saving, no pollution, and no burr.

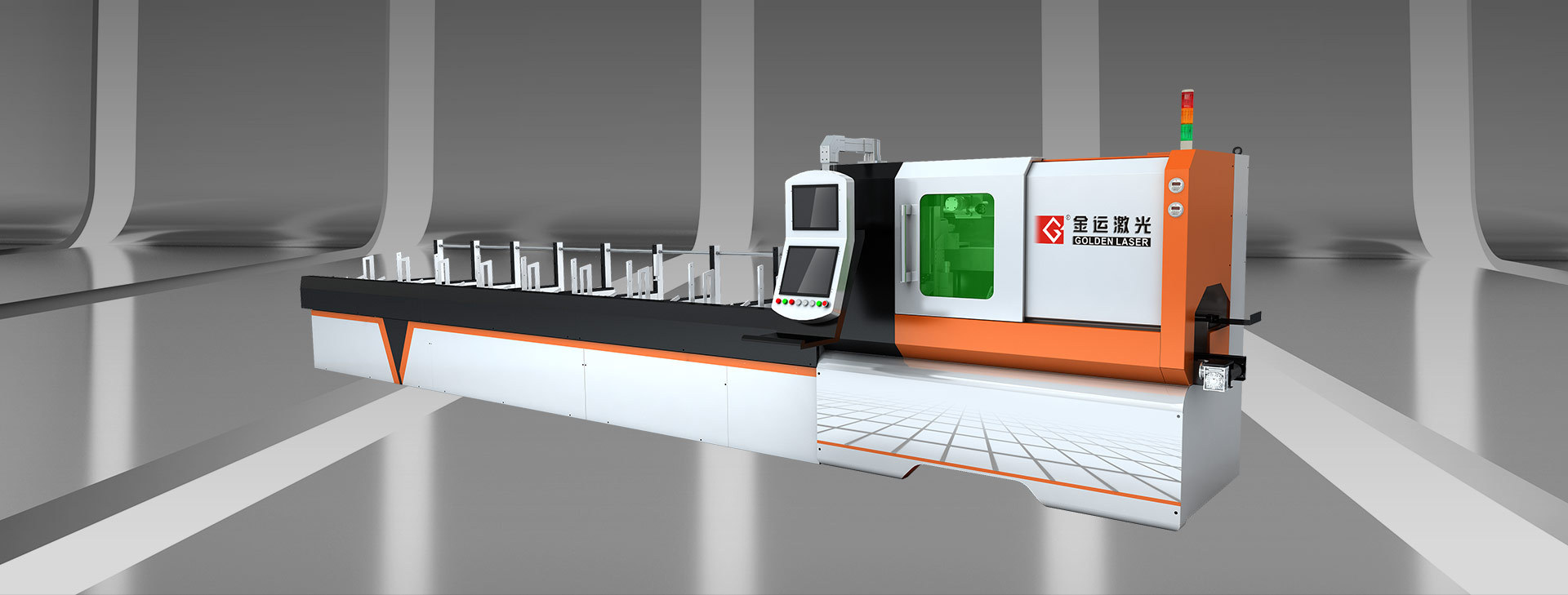

With the advantages of high efficiency and high precision, Golden Laser round tube laser cutting machine P120 is gradually replacing traditional sawing machines, wire cutting machines, and punching machines, to become a main tube processing equipment, which greatly saves laser tube cutting machine cost.
One-button operation, you can put a batch of round tubes into the storage rack, and the equipment can automatically load, cut, and receive, thereby saving labor. It can easily realize mass production by cnc pipe cutting machine and solve various processing shortcomings and difficulties such as low efficiency of traditional pipe cutting, roughness with burrs, deformation and high cost of consumables.
Less labor, safer and more environmental friendly. Meanwhile, the processing efficiency is higher several times than other machines, and the processing quality is better, which brings more benefits and saves laser tube cutting machine cost.
The three technological processes of pipe blanking, hole opening and bevel cutting can be completed in one process, which can save time.
The cutting speed of cnc pipe cutting machine is extremely high, and the cutting time of the pipe is less than 1 second, which is 3-5 times less than sawing machine. The gap is small, and the section of the pipe after cutting is neat, smooth and burr-free.
By using cnc pipe cutting machine, you only need to import the cutting graphics and process library parameters, and then turn on the automatic processing mode without human intervention.
Elbow connector industry:
With simple operation mode, a round tube laser cutting machine of CNC profile cutting is suitable for batch production and processing of multiple types of elbow connectors.
Metal sanitary ware industry:
The metal tube laser cutting machine has no damage to the surface of the tube, and the automatic slag removal device can ensure that the inner wall of the pipe is clean. This can meet the high-quality requirements of high-end bathroom products. Besides, a metal tube laser cutting machine is capable of completing any shape of plate cutting, which shortens the preparation time cycle and is easy to complete continuous processing.
Metal stroller industry:
The bevel cutting can meet the processing requirements of the splicing end between the metal stroller tube workpiece. Metal tube laser cutting machine can perform ultra-fine cutting because of the extremely small focused spot and small heat-affected zone of processing. It is favored by many manufacturers.
Motorcycle parts industry:
Highly automated production methods, so the equipment is also integrated into the processing automobile production line. The motorcycle plate frame is welded from the left and right side plates, and the material is 1.4mm 08AL thin steel plate. The process sequence currently used is dropped stock, drawing, slicing a punch, trimming a punch, rolling an edge a flip hole. If cnc laser tube cutter technology is used, it can replace the process of the material drop and can combine cutting edge punching and trimming edge punching into one process. In addition, the front and rear gear mudguard, fuel tank, chain box, left and right cover and other parts can be trimmed by cnc laser tube cutter technology after the drop and stretch molding.
Metal door and staircase industry:
Compared with traditional processing methods, P120 round tube laser cutting machine has the advantages of low cost tube laser, hihger processing efficiency, and higher profit. Processed by cnc laser tube cutter technology and breaking the stereotype of metal furniture, it is coming into people’s lives in various guises.
| Model name | P120 |
| Maximum processing length | 6000mm |
| Tube diameter range | 20-120mm |
| Type of tube | Round tube |
| Laser source | IPG/ nLIGHT/ Raycus |
| Laser power | 500W-2000W |
| X Y axis maximum acceleration | 0.8g |
| Rotational speed | 90r/min |
| Tail length | ≤40mm |
| Automatic deslag function | Standard |
| Auto feeder maximum weight and size | 800mm*400mm*600mm; 600kg |
| Capacities | ||||||
| Material | 1000W | 1500W | 2000W | 2500W | 3000W | 4000W |
| Carbon steel | 6 | 10 | 12 | 14 | 16 | 20 |
| Stainless steel | 4 | 6 | 8 | 10 | 10 | 12 |
| Galvanized steel | 3 | 5 | 6 | 8 | 8 | 10 |
| Aluminum | 3 | 4 | 5 | 6 | 6 | 10 |
| Brass | 2 | 3 | 4 | 5 | 5 | 8 |
| Copper | 1 | 2 | 2 | 3 | 3 | 4 |
Just put the batch of round pipes into the storage rack, without manually load, and the round tube laser cutting machine can complete the pipe loading, which can save labor. With a CNC laser tube cutter-computer and intelligent control, the cnc pipe cutting machine can work in the predetermined cutting area to produce the desired pattern and processing effect by software. After the technician inputs, the software master into the computer, the cnc pipe cutting machine cuts according to the set track, and the automatic receiving and feeding device receive and feeds the material without the staff throughout the process.
CNC pipe cutting machine China has multiple cutting functions such as hole cutting, truncation, and bevel cutting to meet the processing needs of various industries.
Designed for the pipe fitting industry, saving post-processing procedures. The metal tube laser cutting machine uses a high-energy laser beam to irradiate the workpiece to be processed so that the temperature of the irradiated surface of the workpiece rises rapidly and is in a molten state, and then the auxiliary gas is used to blow off the molten slag.
The processed workpiece after cnc profile cutting can be automatically collected and stored in an orderly manner through the crawler collection mechanism, which protects the surface quality of the workpiece. Meanwhile, crawler collection saves time and labor, to increase efficiency.
Comprehensive and abundant cutting functions, real-time dynamic display of the cutting process, easy-to-hand operation mode, simple and clear operation.
Auto feeder:
Makes the processing process continuous and automated, greatly reducing equipment preparation time.
Automatic receiving:
The processed workpiece can be automatically received and stored in an orderly manner through the crawler receiving device.
Industrial robot:
At the end of the crawler receiving mechanism, the robot can intelligently grasp and palletize the processed workpiece through visual recognition.
The following factors are relevant in cutting process of pipe cutting laser.
Laser mode, laser power, focal point position, nozzle height, nozzle diameter, auxiliary gas, auxiliary gas purity, auxiliary gas flow, auxiliary gas pressure, cutting speed, sheet speed, sheet surface quality.
1. Comply with the general cutting machine safety operating procedures. Start the laser in strict accordance with the laser start-up procedures.
2. The operator must be trained and familiar with the structure and performance of the equipment and master the knowledge about the operating system.
3. Wear labor protective equipment as required, and must wear protective eyewear in the vicinity of the laser beam in accordance with regulations.
4. In the absence of a material that can be irradiated or heated by a laser, do not process it to avoid the potential danger of smoke and steam.
5. The operator should not leave the post or entrust someone to be in charge when the equipment is running, and should stop or cut off the power switch if it is necessary to leave.
6. The fire extinguisher should be placed within easy reach; turn off the laser or light switch when not processing; do not place papers, cloth or other flammable materials near the unprotected laser beam.
7. In the process of processing found abnormal, the worker should immediately stop, timely troubleshooting, or report to the competent personnel.
8. Keep the laser, the bed, and the surrounding site neat, orderly, free of oil, workpieces, plates, scrap piled up according to regulations.
