Name: Heavy Duty Tube Laser Cutting Machine Mega4
Brand: Wuhan Golden Laser Co., Ltd.
Price: 6000.0 USD

General Information

Overview of Heavy Duty Tube Laser Cutting Machine

Laser cutting uses a focused high-power-density laser beam to irradiate the workpiece so that the irradiated material quickly melts, vaporizes, ablates, or reaches the ignition point while blowing away the molten material. And with the help of a high-speed airflow coaxial to the beam, thus realizing the cutting of the workpiece. Laser cutting is one of the thermal cutting methods.

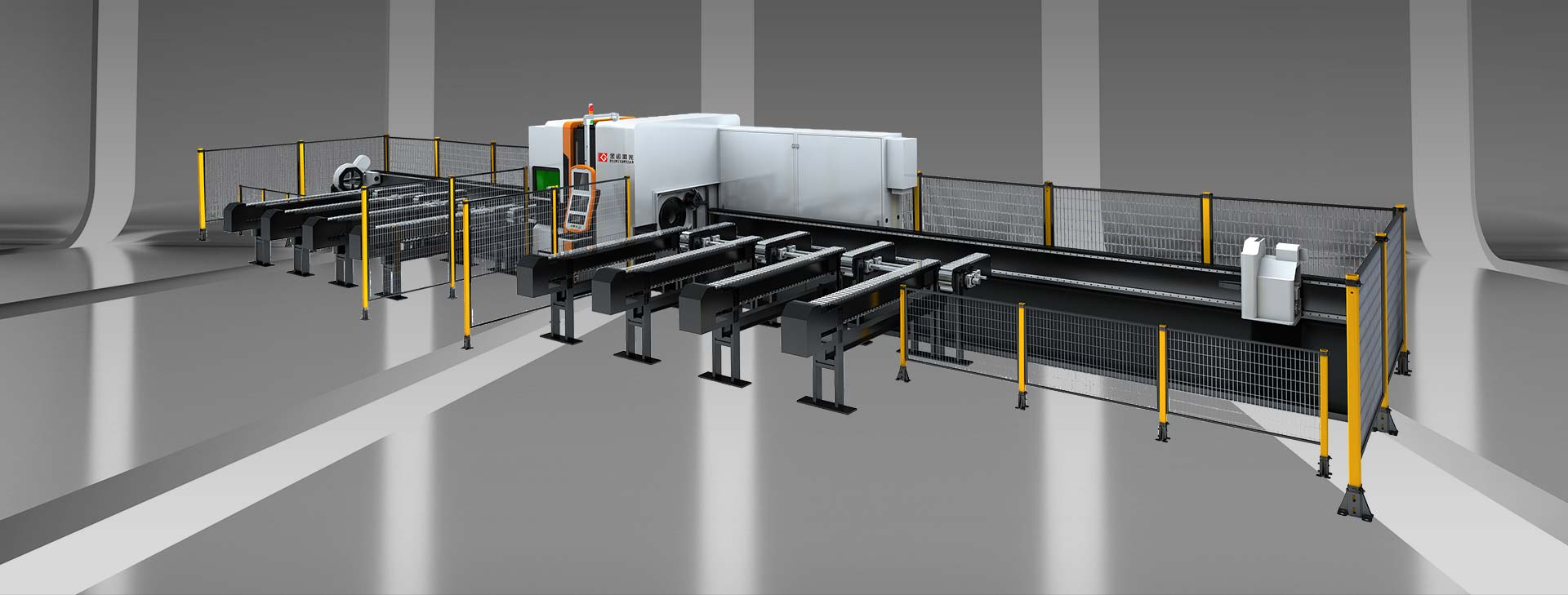

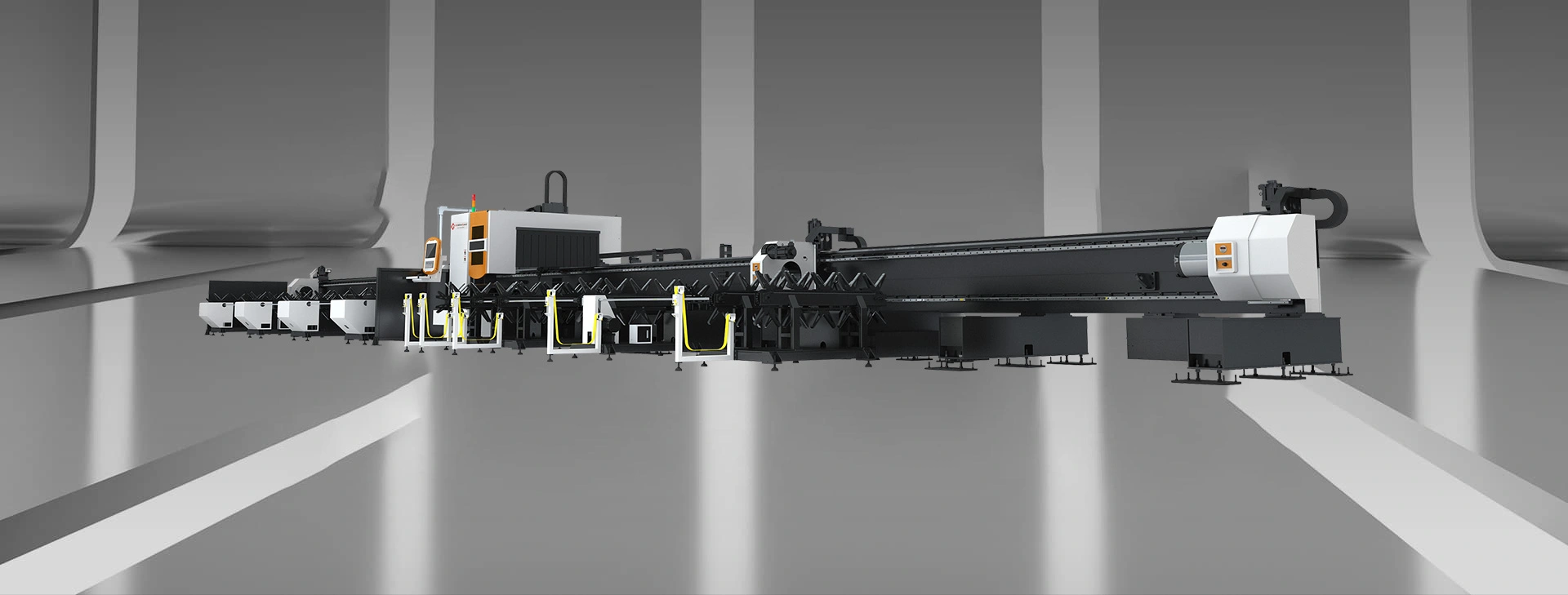

We have launched the heavy-duty tube laser cutting machine, a large cutting machine for processing super-long and super-heavy pipes. From automatic feeding to stable clamping and finally, to automatically receiving the finished workpiece, the whole process can be fully automated. Save time and labor for you.

Professional Heavy Chucks

Compared with the general laser pipe cutting machine, the load-bearing weight of the chuck of a large laser cutter is increased to 500kg. The maximum load-bearing capacity of a single tube can reach 1.8 tons. The most extended length supports automatic loading and cutting of 12 meters of pipes.

Friendly Operation

The equipped chain-type automatic loading and unloading system can support up to 12 meters of heavy-duty pipe loading and unloading. The number of single preparations can reach 6 to ensure the continuity of the processing process and reduce equipment downtime. Only one person can efficiently complete the entire process.

Supports Multiple Types Of Pipes

Large cutting machine fully supports the cutting of round pipes, square pipes, rectangular pipes, elliptical pipes, channel steel, angle iron, I-beams, slats, profiles, special-shaped pipes, etc., and supports bevel processing.

CE Standard

The large cutting machine strictly adheres to the CE standard. The overall safety protection reaches the highest level without worrying about safety.

Video Display of Heavy Duty Tube Laser Cutting Machine Mega4

Application of Heavy Duty Tube Laser Cutting Machine

Construction machinery industry:

Many major load-bearing structures in construction machinery use ultra-long and ultra-thick channel steel, I-beams and other pipes. The traditional plasma cutting and flame cutting methods have low processing efficiency and quality. But the large cutting machine can completely solve the problem of heavy pipe processing. In the future, cnc profile cutting will gradually replace these methods. The material texture and style are maximized, and the building's proportions, texture, and space are rigorously expressed. With the delicate mind of laser process, all the structural elements are fully expressed in the sectional plane.

Shipbuilding industry:

The automatic processing capability of the large cutting machine can speed up the processing efficiency of the pipe components. Nowadays, "precision shipbuilding" and "fast shipbuilding" have become the main trends in the development of ship manufacturing, and cnc pipe cutting machine technology has been developing rapidly, accounting for more than 70% of the entire laser processing industry. The marine manufacturing industry is mainly based on the raw material of steel plates. Using the laser to cut the plate can greatly shorten the production cycle and reduce the processing cost at the same time. The use of a laser cutting machine for undercutting cancels the assembly margin, eliminates the phenomenon of on-site trimming, reduces labor and plate waste, significantly accelerates the speed of frame assembly, and improves the quality of assembly significantly.

Steel structure industry:

Large laser cutter can realize welding-free, making the product more stable. Tube cutting is currently the largest share of laser applications of cnc pipe cutting machine china, most of which are laser cutting applications for medium and high power metal materials. This, of course, includes stainless steel, carbon steel, copper, aluminum and other major metals in everyday life, of which stainless steel, carbon steel accounted for the most.

1 2 3

Technical Data of Heavy Duty Tube Laser Cutting Machine

Model name	Mega4
Workpiece length	0-12000mm
Tube diameter range	20-350mm
Type of tube	Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.
Single Tube Loading Weight	1.2t (1200kg)
Laser source	IPG/nLIGHT/Raycus
Laser power	1500W-6000W
Positioning accuracy	±0.03mm
Rotational speed	70r/min
Support bevel cutting	Yes
Automatic deslag function	Option
Weld recognition	Option
Auto feeder	Standard chain loading and unloading system
Loading size	6* 12000mm

Laser Cutting Metals And Laser Powers
Material	1500W	2000W	2500W	3000W	4000W	6000W
Carbon steel	10	12	14	16	20	25
Stainless steel	6	8	10	10	12	16
Galvanized steel	5	6	8	8	10	12
Aluminum	4	5	6	6	10	16
Brass	3	4	5	5	8	10
Copper	2	2	3	3	4	6

Highlights of Heavy Duty Tube Laser Cutting Machine

Chain Drive Loading and Unloading System

The loading and unloading adopt a chain drive model without manual intervention. Chain drive, choose the chain type and length and tensioning method according to the primary factors such as load, speed, and working environment. The large laser cutter can ensure an accurate transmission ratio, transferring more power and acting on the shaft with less force and high transmission efficiency.

Intelligent Heavy-duty Chuck With Large Clamping Range

Large laser cutter adopts 3 heavy-duty pneumatic chucks with a maximum load of 500kg and a 20-350 mm clamping range. The clamping pressure of the pneumatic chuck supports digital visual adjustment, which is precise and easy to control.

Servo Reducing Wheel Support System

Both the loading end and the unloading end are equipped with servo reduction wheel brackets to increase the load-bearing capacity. When cutting different types of pipes, input the pipe diameter data through the cnc laser pipe cutting system to automatically adjust the wheel support angle. Servo motor control, positioning is more accurate.

No manual adjustment is required, and the operation is more straightforward and safer.

Modular Mechanical Structure Of Side Rail

The large laser cutter adopts the side rail design and chuck suspension type, accommodating larger pipes. The large cutting machine structure adopts the modular design, realizing segmental splicing installation and convenient installation and disassembly. Even if the length of the whole machine exceeds 24 meters, there are no restrictions on transportation.

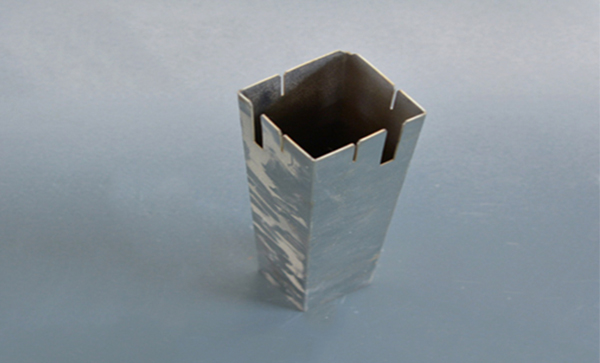

Samples of Heavy Duty Tube Laser Cutting Machine

More Information

Software of Heavy Duty Tube Laser Cutting Machine

New Architecture Of CNC Cutting System

It adopts bus control mode which can support touch screen operation. The new UI operation interface has 7 intelligent management modules for planning, production, process, debugging, diagnosis, maintenance, and setting.

Professional Pipe Nesting Software

It matches Spanish lantek nesting software with comprehensive functions. High Material Utilization Rate. In addition to ordinary pipes, it can also nest channel steel, angle steel and other profiles, powerful functions; Path optimization, co-edge cutting, improve efficiency and save costs.
