Smart Laser Tube Cutting Machine
Smart Laser Tube Cutting Machine

Smart Laser Tube Cutting Machine Manufacturer

An expert in pipe cutting with intelligent, digital, European quality.

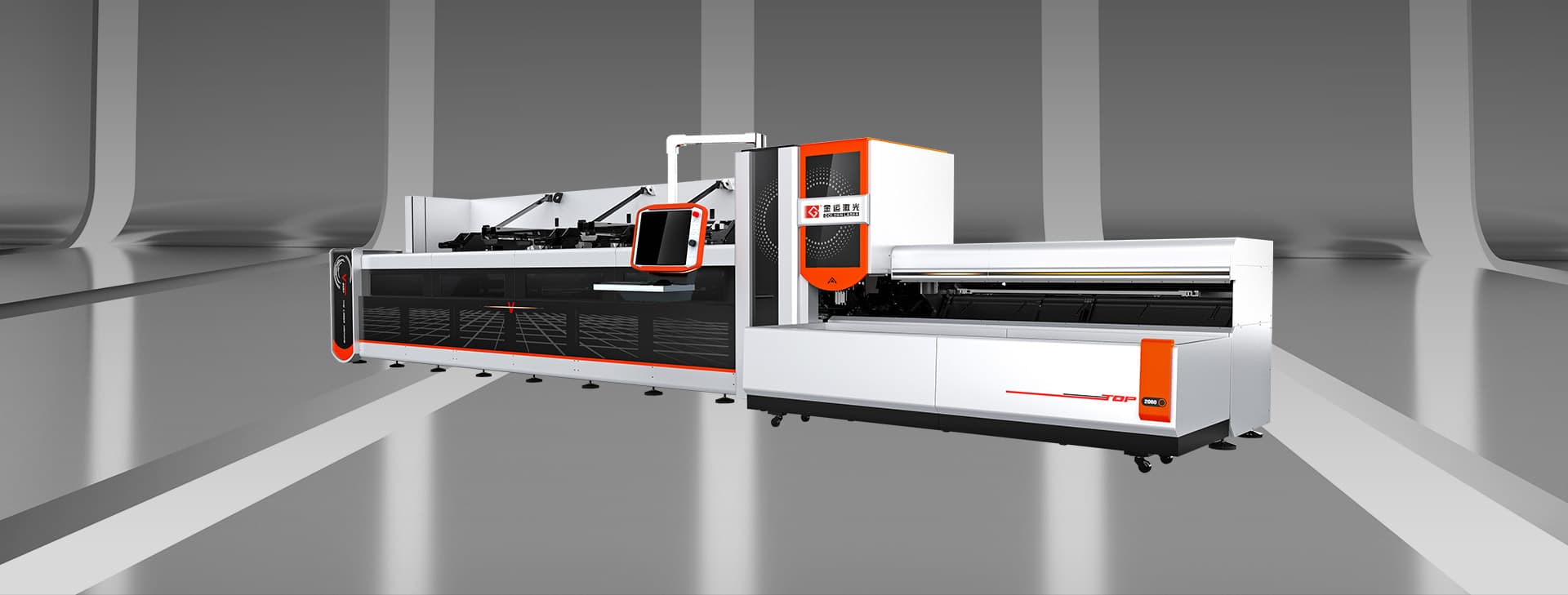

Overview of Smart Laser Tube Cutting Machine

An Intelligent, digital, and automated laser tube cutting machine can deal with kinds of metal pipes.

Pipe fittings are used in many fields, from warehouse shelving systems to many applications in the metal furniture industry. A smart laser tube cutting machine can flexibly produce different orders with various outer circle diameters and lot sizes in succession.

Application of Smart Laser Tube Cutting Machine

Technical Data of Smart Laser Tube Cutting Machine


Model nameP2060AP3080A
Workpiece length0-6000mm0-8000mm
Tube diameter range20-200mm20-300mm
Types of tubesRound tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, etc.
Single tube bearing weight25kg/m25kg/m
Laser sourceIPG/ nLIGHT/ RaycusIPG/ nLIGHT/ Raycus
Positioning accuracy±0.03mm±0.03mm
X Y axis maximum moving speed95m/min75m/min
Auto Bundle maximum size and weight800mm*800mm*6000mm; 2.5T800mm*800mm*8000mm; 2.5T



Capacities
Material1000W1200W1500W2000W2500W3000W4000W
Carbon steel681012141620
Stainless steel4568101012
Galvanized steel34568810
Aluminum33456610
Brass2234558
Copper1122334

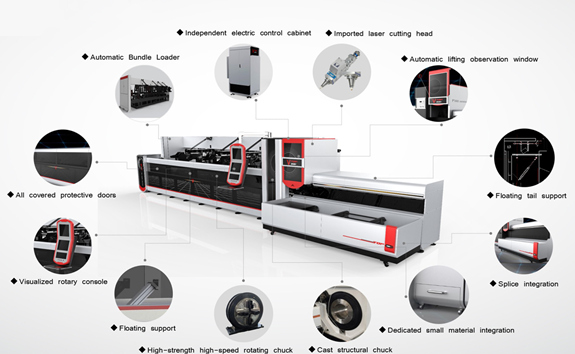

Highlights of Smart Laser Tube Cutting Machine

Upgraded PA Touch Screen Bus Cutting System
Upgraded PA Touch Screen Bus Cutting System

It can be matched with the EMS intelligent cloud data management system of the intelligent manufacturing factory.


Multi-cutting Function
Multi-cutting Function

Flight cutting, leapfrogging, 3D stereo correction, servo adjustment support, non-inductive perforation, automatic search, etc. This can meet the needs of different pipe processing.


Auxiliary Feeding And Centering Device
Auxiliary Feeding And Centering Device

Two auxiliary feeding centering devices are equipped at the front and rear of the feeding end to ensure accurate reading of the chuck clamping.


Floating Support System
Floating Support System

During the pipe cutting process, the support automatically adapts to the change of the pipe rotation posture. Ensure more stability during pipe processing.


Automatic Deslagging (optional)
Automatic Deslagging (optional)

The inner wall of the workpiece is clean and beautiful without leaving any slag, which improves the quality.


Weld Recognition (optional)
Weld Recognition (optional)

The cutting program is executed effectively, and the processing track automatically avoids the welding seam position for cutting. Avoid damage to pipe components.

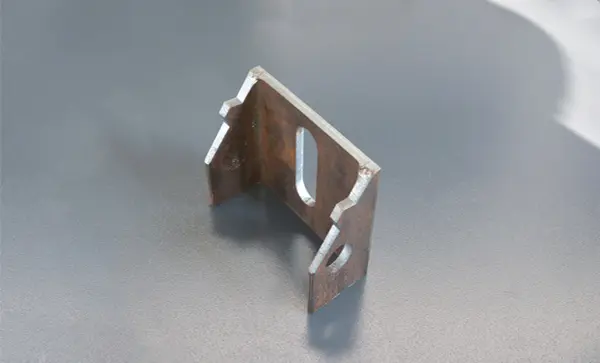

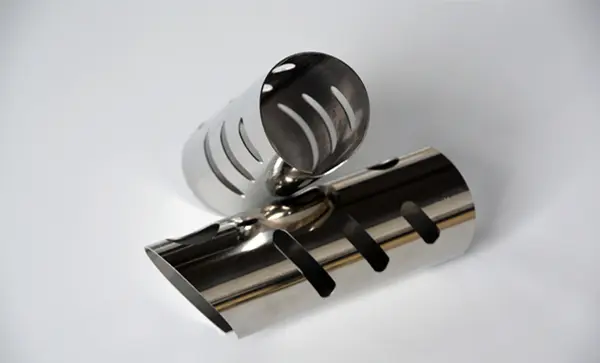

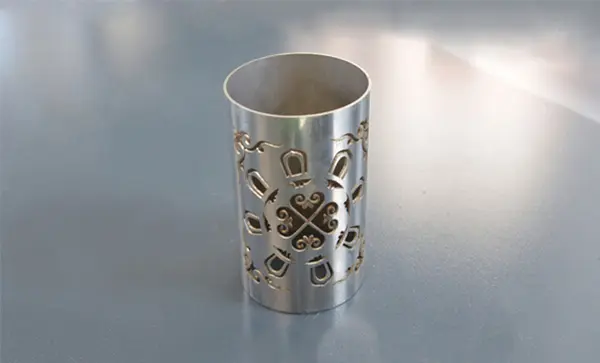

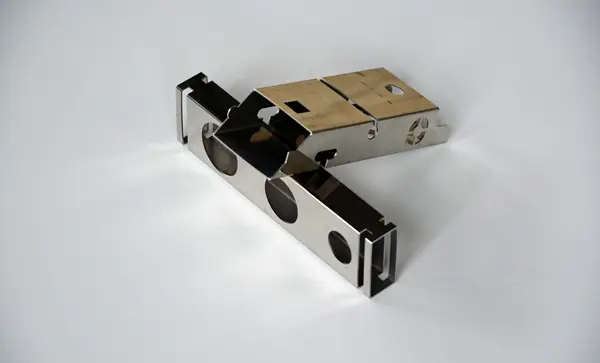

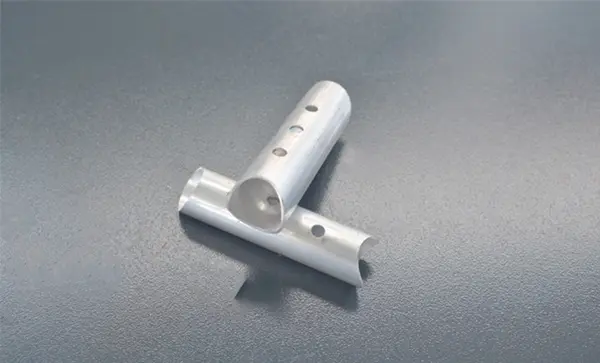

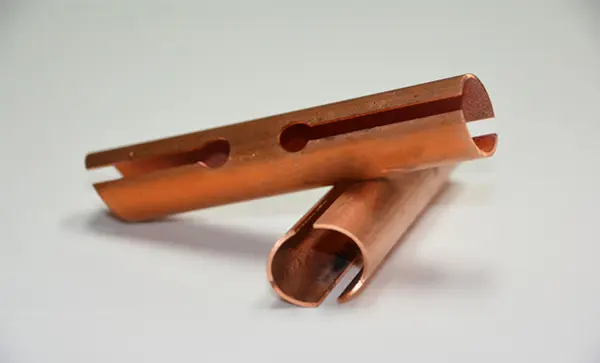

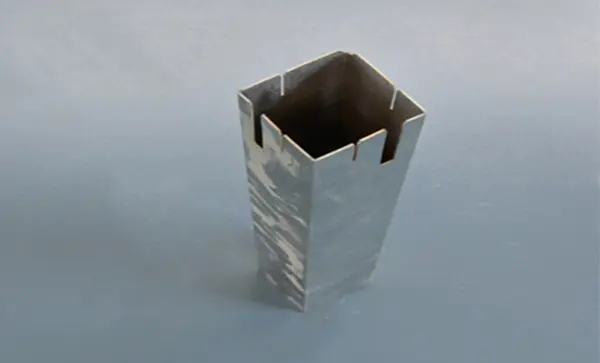

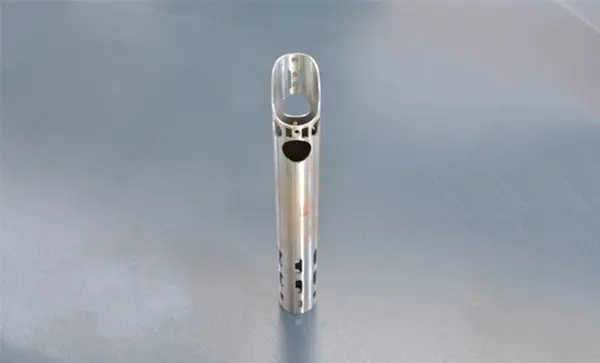

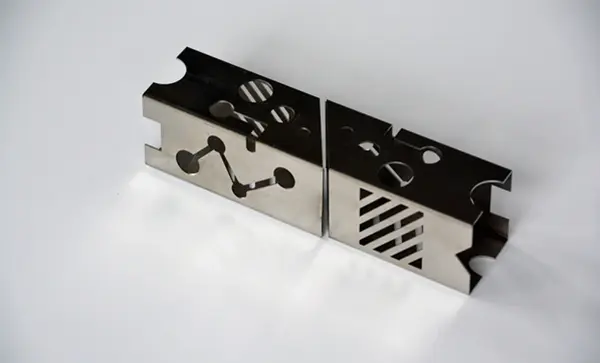

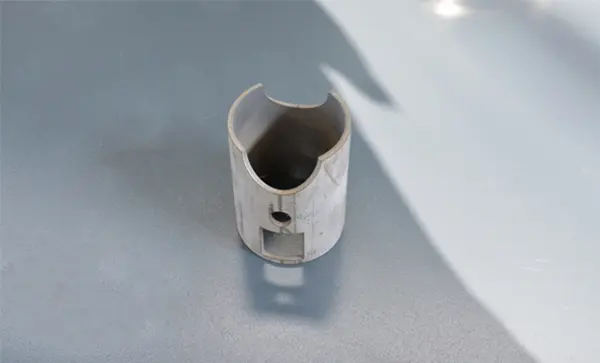

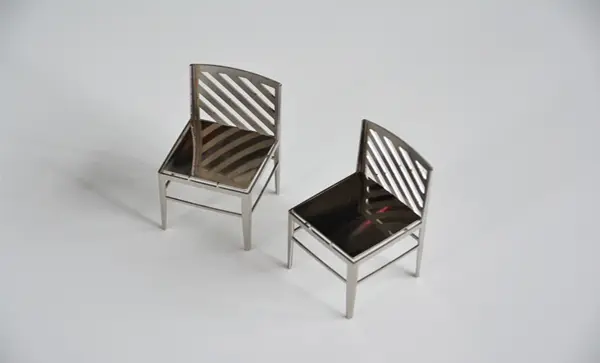

Samples of Smart Laser Tube Cutting Machine

Software of Smart Laser Tube Cutting Machine

Germany PA System
Germany PA System

Only one page complete all operations, more friendly.


Quickly customize the interface, more convenient.


Add an independent diagnostic interface.


Quick troubleshooting on site. More intelligent.

Spanish Lantek Flex3d Supporting Various Pipes
Spanish Lantek Flex3d Supporting Various Pipes

Standard pipes: Equal diameter pipes such as round, square, Ob-type, D-type, triangular, oval etc


Meanwhile, flex3d is equipped with profile cutting function modules to cut angle steel, channel and H-shaped steel, etc.

Automation of Smart Laser Tube Cutting Machine

Automation of Smart Tube Laser Cutting Machine1

Optional Magazine Loading System

Round, square, and rectangular pipes and various pipes can be automatically loaded from the magazine into the machine programmed from the CNC controller.

Automatic loading system realizes the automatic continuous production, is especially for mass production demand. Improve production efficiency.

This auto feeder is suited for 800*800mm bundle pipe loading. With automatic measure function to ensure loading the right pipe without any mistake. The alarm warning system reminds the operator during the whole production.
