Name: 0 Tailing Laser Tube Cutting Machine
Brand: Wuhan Golden Laser Co., Ltd.
Price: 6000.0 USD

General Information

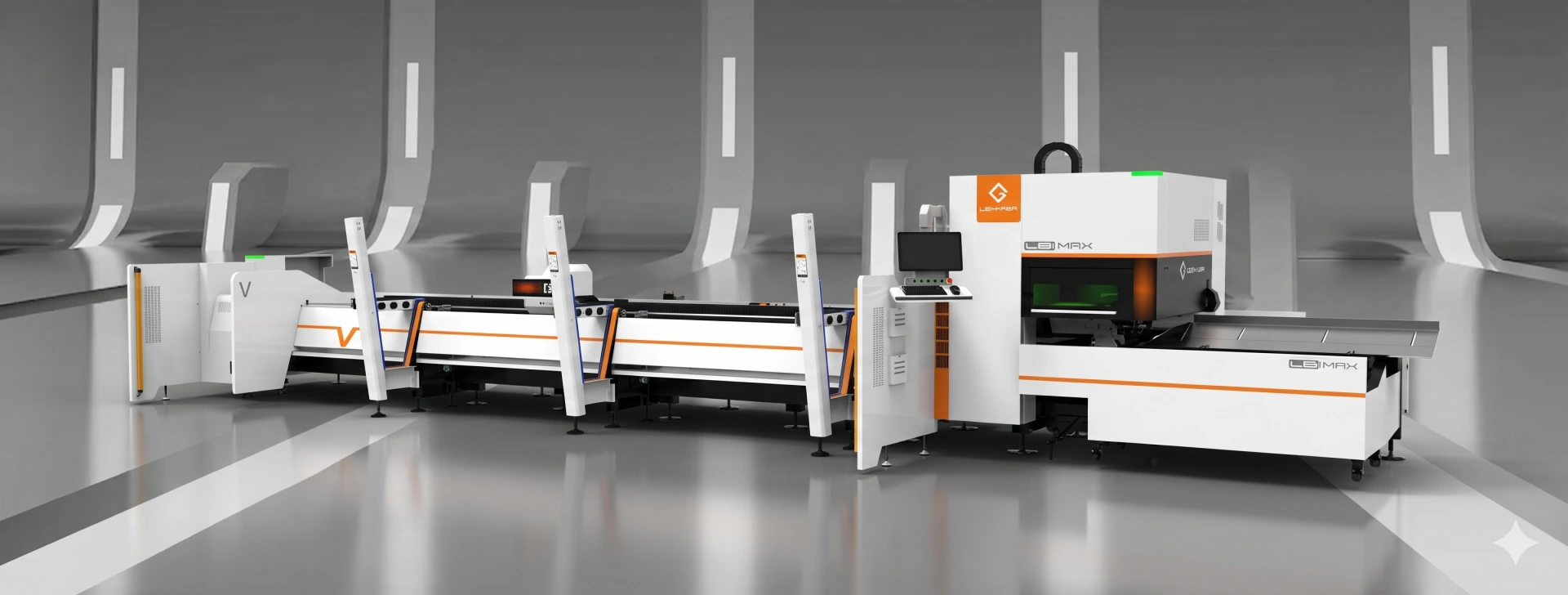

0 Tailing Laser Tube Cutting Machine for Sale

L12MAX L16MAX: High-Speed Precision Fiber Laser for Small Tube Processing (Ø8–120mm)（Golden Laser support customized laser solution depends on your project）

Revolutionize your production with the L12MAX L16MAX tiny tube fiber laser cutting machine. Engineered for high-speed efficiency, it features an ultra-fast automatic loading system with seamless switching between fully and semi-automatic modes. Equipped with a zero-scrap chuck and floating support design, the L12MAX L16MAX ensures maximum material utilization and high-precision results for tubes ranging from 8mm to 120mm or 8mm to 160mm. Experience zero-waste manufacturing and versatile adaptability in one compact, rapid-production solution.

Video Display of 0 Tailing Laser Tube Cutting Machine

Application of 0 Tailing Laser Tube Cutting Machine

0 Tailing Laser Tube Cutting Machine For Strollers

Small tube laser cutting machines can cut different materials of stroller pipe components, such as round stainless steel tube, round aluminum tube, and rectangular tube. The metal fabrication of the stroller is usually made of metal tubes with ∅ 20 mm to 50 mm. An advanced small pipe cutting machine saves production costs and improves work efficiency for stroller manufacturing.

0 Tailing Laser Tube Cutting Machine For Metal Furniture Industry

The pipe fittings used in metal furniture are mostly stainless steel round pipe or rectangular pipe, etc, which is very suitable for using the small metal cutting machine. Whether it is a batch processing of conventional pipes or customized product processing, there is no problem with using our small pipe cutting machine.

Automated Medical Tubing Cutter For Food and Medical Equipment Industry

S12plus automated medical tubing cutter has the characteristics of automation, intelligence, and digitization, which can be matched with the intelligent manufacturing production line of the food and medical equipment factory, replacing the traditional low-efficiency method before.

0 Tailing Laser Tube Cutting Machine For Stainless Steel Products

Utilize the excellent technology of small laser pipe cutter/cutting machine to realize the high-efficiency and high-quality requirements. Bring more business opportunities to customers.

1 2 3 4

Technical Data of 0 Tailing Laser Tube Cutting Machine

Model name	L12MAX / L12MAX-3D ; L16MAX / L16MAX-3D
Processing pipe size range	L12MAX: Round tube Ø 8mm-120mm , square tube □ 8mm8mm-120mm120mm L16MAX: Round tube Ø 8mm-160mm , square tube □ 8mm8mm-160mm160mm
Laser source	MAX fiber laser
Laser power	1500W - 3000W
Max acceleration	1.5g
Repeatability	0.03mm
Rotational speed	200r/min
Loading machine capacity	1.5T (fully auto-feeder) / 350kg (semi auto-feeder)
Automatic feeding pipe requirements	Round tube: Ø15mm-100mm , square tube: □ 15mm15mm-100mm100mm Tube length: 5700mm - 6300mm
Auto / semi-auto loading tube size range	Auto: Ø 20mm-80mm , □ 20mm20mm-80mm80mm Semi-auto: Ø 8mm-120mm , □ 8mm8mm-120mm120mm
Application	Metal fence, metal furniture, scaffolding, fitness equipment, pipe fence, automotive parts, trolley

Highlights of 0 Tailing Laser Tube Cutting Machine

Engineered for Peak Dynamics & High-Speed Output

2.0g Maximum Acceleration: Ensures instant velocity changes and rapid cornering precision.
200 rpm Chuck Rotation Speed: Delivers high-speed, stable rotation for rapid tube processing.
120 m/min Idle Travel Speed: Minimizes non-cutting intervals to maximize overall cycle times.
Optimized for Small Tubes: High dynamic response engineered specifically to elevate small tube production efficiency.

Advanced Feeding & Material Flexibility

Ultra-Fast Auto-Loader: Dramatically reduces cycle times with high-speed automated material handling.
Dual-Mode Flexibility: Seamlessly switches between fully automatic and semi-automatic modes to match your production scale.
Versatile Profile Capacity: Automatically feeds and cuts round tubes, square tubes, and complex shapes without hassle.
Ø8–120mm Working Range: Optimized for high-precision processing across a broad spectrum of small tube diameters.

Next-Gen Two-Chuck Material Saving System

Smart Chuck Avoidance: Front chuck automatically evades to allow ultra-close cutting, minimizing un-cut zones.
Composite Clamping & Gripping: Multi-functional chuck mechanics ensure maximum stability and flawless tube handling.
True Zero-Scrap Cutting: Achieving 0mm waste with only two chucks, eliminating the need for complex, expensive 3-chuck or 4-chuck systems.
Cost-Efficient Production: Maximizes material yield per tube, significantly lowering total cost per part (CPP).

Adaptive Floating Support & Precision Control

Smart Rotational Adaptation: Intelligently synchronized to match the real-time rotational posture and speed of the tube.
Full-Cycle Material Support: Provides continuous, heavy-duty dynamic support during both the loading and unloading workflows.
Long-Tube Deformation Prevention: Eliminates whipping and sagging, guaranteeing exceptional processing precision for long tubes.
Multi-Profile Compatibility: Automatically adjusts to round, square, and specialized shapes without damaging delicate surfaces.

Why Operators Choose BOCHU TubePro

Zero-Hassle Interface: Clean layout and intuitive iconography that allow even first-time users to master basic tube laser operations rapidly.
Intelligent Setup Wizard: Smart templates guide users step-by-step through material selection, graphic layout, and optimal path planning.
Pre-Loaded Process Library: An extensive database of cutting parameters for multiple thicknesses, eliminating trial-and-error material waste.
